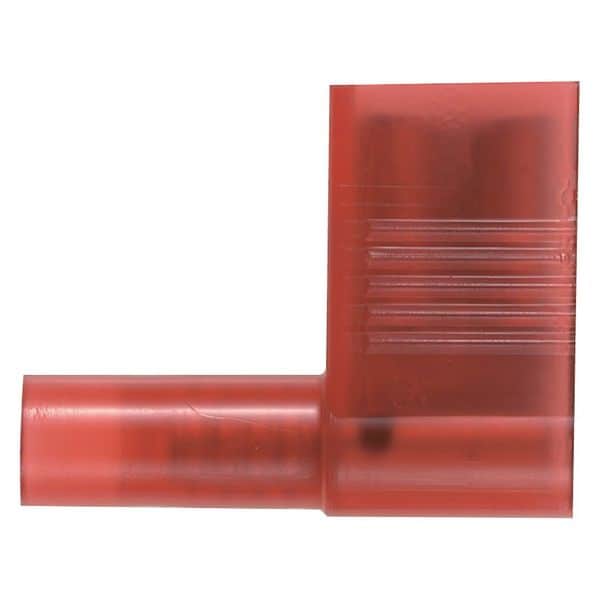

Desconexión rápida hembra de bandera, roja, 22-18AWG, paquete de 50
| Item | Female Flag Disconnect |
|---|---|
| Insulation | Full |
| For Use With | CT-300-1 |
| Insulation Color | Red |
| Color Code | Red |
| Wire Range | 22 to 18 AWG |
| Connection Type | Crimp |
| Insulation Type | Nylon |
| Overall Length | 0.58 in |
| Tab Size | 0.032 in x 0.250 in |
| Seam | Butted |
| Connector Type | Quick Disconnect |
| Max. Temp. | 221 deg F |
| Max. Voltage | 600 V |
| Connection Material | Tin-Plated Brass |
| Barrel Inside Dia. | 0.062 in |
| Standards | C22.2 No.153, CSA Certified LR31212, UL 310 Listed, UL Listed 20H3 E78522 |
| Features | Flame Retardant |
| Width | 0.4 in |
| Insulation Material | Nylon |
| Minimum Operating Temperature | -60 deg F |
| Tab Width | 1/4 in |
| Minimum Wire Size | 22 AWG |
| Contact Finish | Tin |
| Terminal Type | Socket |
| Maximum Operating Temperature | 221 deg F |
| Special Features | Disconnect can be Inserted and Removed From the Male Tab Without the Use of Tools for Lower Installed Cost, Fully Insulated Design Provides Protection From Electrical Shorts, Internal Wire Stop Assures Proper Length of Insertion Into Terminal Barrel, Providing a Higher Quality Connection, Right Angle Design for Use in Limited Space Applications, Vibration Resistant |
| Barrel Style | Funnel Entry |
| Termination Style | Crimp |
| Maximum Voltage | 600 V |
| RoHS Compliant | Yes |
| Tab Thickness | 0.032 in |
| UL 94 Flammability Rating | V-2, HB |
| Contact Material | Brass |
| Connection Orientation | 90 Degrees Angled |
| Strip Length | 1/4 in |
| Seam Style | Butted |
| Maximum Wire Size | 18 AWG |
| Insulation Coverage | Full Coverage |
| Barrel Inside Diameter | 0.062 in |
| Tongue Angle | Right Angle |
| Product Type | Disconnect |
| Minimum Wire Size (AWG) | #22 |
| Standards Met | UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153 |
| Maximum Copper Conductor Size (AWG) | #18 |
| Minimum Metric Conductor Size (mm²) | 0.5 |
| Maximum Wire Size (AWG) | #18 |
| Overall Width (mm) | 15.2 |
| Wire Strip Length (In.) | 11,933 |
| Overall Length (mm) | 14.7 |
| Maximum Wire Insulation Diameter (mm) | 4.5 |
| Maximum Operating Temperature (°C) | 105 |
| Disconnect Type | Female Disconnect-Right Angle |
| Base Material | Brass |
| Maximum Wire Insulation Diameter (In.) | 0.18 |
| Note | DNFR18-250FIB-C, DNFR18-250FIB-L |
| Finish/Coating | Tin-Plated |
| Overall Depth (In.) | 0.6 |
| Maximum Operating Temperature (°F) | 221 |
| Insulation Diameter (mm) | 4.6 |
| Overall Depth (mm) | 15.2 |
| Insulation Diameter (In.) | 0.18 |
| Wire Strip Length (mm) | 7.1 |
| Minimum Copper Conductor Size (AWG) | #22 |
| Maximum Metric Conductor Size (mm²) | 1 |
| Barrel Type | Funnel |
| Tab Size (mm) | 6.3 x 0.8 |
| Seam Type | Butted |
| Overall Length (In.) | 0.58 |
| Overall Width (In.) | 0.6 |
| Maximum Voltage (kV) | 0.6 |
| Tab Size (In.) | 0.25 x 0.032 |
| Flammability Rating | UL94-HB |
| Maximum Voltage (V) | 600 |
| Product Material | Brass |
| Connector Details | 1 x (Quick Disconnect) |
| Environmentally Friendly | Yes |
| Contact Plating | Tin |
| Product Name | Terminal Connector |
| Product Color | Red |
| Sub Brand | Pan-Term® |
| Packaging Type | Bottle |
| Minimum Metric Conductor Size (mm²) | 0.5 |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Operating Temperature (°F) | 221 |
| Maximum Metric Conductor Size (mm²) | 1 |
| Package Quantity | 50 |
