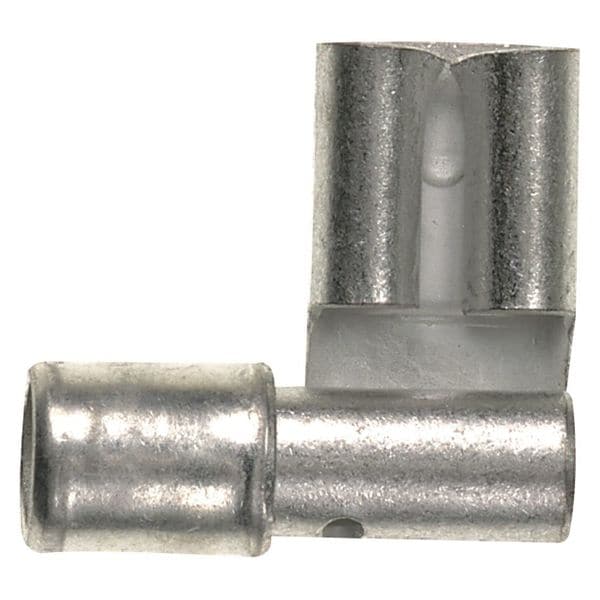

Identificación de bandera hembra, desnuda, calibre 16-14AWG, paquete de 1000.
| Item | Female Flag Disconnect |
|---|---|
| Insulation | None |
| Insulation Color | Bare |
| Insulation Type | Non-Insulated |
| Wire Range | 16 to 14 AWG |
| Connection Type | Crimp |
| Overall Length | 0.57 in |
| Tab Size | 0.032 in x 0.250 in |
| Seam | Sleeved Barrel |
| Max. Voltage | 300 V |
| Max. Temp. | 302 deg F |
| Standards | C22.2 No.153, CSA Certified LR31212, UL 310 Listed, UL Listed 20H3 E78522 |
| Connection Material | Tin-Plated Brass |
| Barrel Inside Dia. | 0.09 in |
| Tab Width | 1/4 in |
| Seam Style | Sleeved Barrel |
| Maximum Voltage | 600 V |
| Connection Orientation | 90 Degrees Angled |
| Insulation Material | None |
| Terminal Type | Socket |
| Barrel Inside Diameter | 0.09 in |
| Special Features | Barrel of Terminal Internally Beveled to Provide Quick and Easy Wire Insertion, Disconnect can be Inserted and Removed From the Male Tab Without the Use of Tools for Lower Installed Cost, Internal Barrel Serrations Assure Good Wire Contact and Maximum Tensile Strength, Right Angle Design for Use in Limited Space Applications, Sleeved Barrel Helps to Facilitate High Mechanical and Electrical Performance When Crimping, Vibration Resistant |
| Barrel Style | Sleeved Barrel |
| Barrel Size | Standard |
| Contact Material | Brass |
| Minimum Wire Size | 16 AWG |
| Tab Thickness | 0.032 in |
| Maximum Wire Size | 14 AWG |
| Insulation Coverage | None |
| Termination Style | Crimp |
| Strip Length | 1/4 in |
| Minimum Operating Temperature | -60 deg F |
| Maximum Operating Temperature | 302 deg F |
| Contact Finish | Tin |
| RoHS Compliant | Yes |
| Package Quantity | 1000 |
