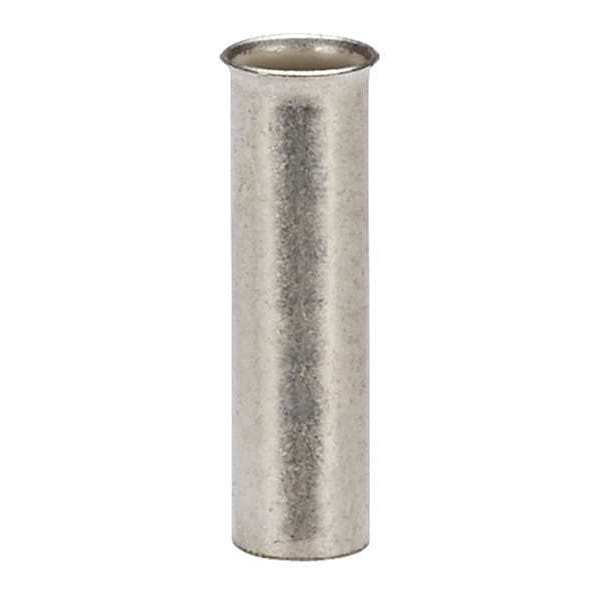

Ferrule, calibre 10 AWG, sin aislamiento, 19/32 pulgadas, paquete de 1000.
| Item | Ferrule |
|---|---|
| Wire Range | 10 AWG |
| Insulation Type | Non-Insulated |
| Insulation Color | Bare |
| Insertion Length | 19/32 in |
| Overall Length | 0.59 in |
| Max. Temp. | 302 Degrees F |
| Features | Funnel Entry, Seamless Barrel, Suitable for Limited Space Applications, Type F |
| Standards | CSA C22.2 No. 291-14, DIN 46228 Part 1 |
| Connection Material | Tinned |
| Contact Material | Copper |
| Minimum Wire Size | 10 AWG |
| Strip Length | 19/32 in |
| Maximum Conductors | 1 |
| Barrel Diameter | 0.15 in |
| Compatible Manufacturer Model Number | CT-1002, CT-1003, CT-1090, CT-1123, CT-1160, CT-1170 |
| Insulation Material | None |
| Barrel Finish | Tin Plated |
| Ferrule Material | Copper |
| Ferrule Diameter | 0.15 in |
| Special Features | Funnel Entry, Seamless Barrel, Suitable for Limited Space Applications, Type F |
| Maximum Wire Size | 10 AWG |
| Compatible with Series | CT |
| Maximum Operating Temperature | 302 deg F |
| Compatible with Product Type | Terminal Block |
| Barrel Material | Copper |
| Contact Finish | Tin |
| Package Quantity | 1000 |
