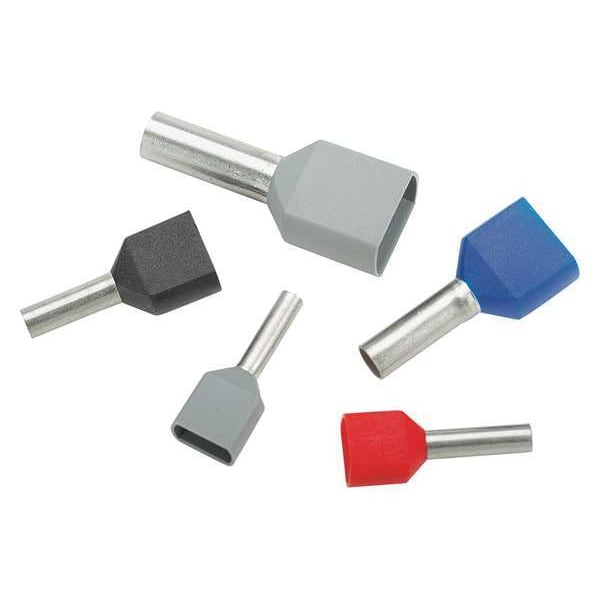

Terminal, calibre 18, PP, 9/16 pulgadas, paquete con 500 unidades.
| Item | Ferrule |
|---|---|
| Wire Range | 18 AWG |
| Insulation Type | Self-Insulated |
| Insulation Color | Red |
| Insertion Length | 9/16 in |
| Overall Length | 0.67 in |
| Max. Temp. | 221 Degrees F |
| Features | Funnel Entry, Seamless Barrel, Suitable for Limited Space Applications, Type FSD |
| Standards | CSA C22.2 No. 291-14, DIN 46228, UL 486F |
| Connection Material | Tinned |
| Insulation Material | Polypropylene |
| Maximum Wire Size | 18 AWG |
| Contact Material | Copper |
| Barrel Material | Copper |
| Maximum Operating Temperature | 221 deg F |
| Termination Style | Crimp |
| Compatible with Series | CT |
| Contact Finish | Tin |
| Minimum Wire Size | 18 AWG |
| Barrel Finish | Tin Plated |
| Compatible with Product Type | Terminal Block |
| Strip Length | 9/16 in |
| Compatible Manufacturer Model Number | CT-1002, CT-1003, CT-1090, CT-1123, CT-1160, CT-1170, CT-2300/ST (CD-090), CT-2500/L (CT-2523CH) |
| Barrel Length | 0.28 in |
| Special Features | Funnel Entry, Seamless Barrel, Suitable for Limited Space Applications, Type FTD |
| Barrel Diameter | 0.11 in |
| Ferrule Material | Copper |
| Maximum Conductors | 2 |
| Minimum Operating Temperature | -60 Degrees F |
| Ferrule Diameter | 0.09 in |
| Color | Red |
| Finish | Tin-Plated |
| Inside Dia. | 0.08 in |
| Material | Copper |
| Environmentally Friendly | Yes |
| Product Name | Electric Wire Ferrule |
| Product Color | Red |
| Product Type | Electric Wire Ferrule |
| Product Material | Polypropylene |
| Length | 0.7 in |
| Inside Diameter (mm) | 2.1 |
| Base Material | Copper |
| Pin Length (mm) | 10 |
| Inside Diameter (In.) | 0.08 |
| Minimum Operating Temperature (°C) | -54 |
| Pin Length (In.) | 0.39 |
| Outer Diameter (mm) | 2.35 |
| Wire Strip Length (In.) | 45,185 |
| Maximum Metric Conductor Size (mm²) | 1 |
| Standards Met | DIN 46228, CSA C22.2 No. 291-14, UL 486F, cULus 486F |
| Minimum Operating Temperature (°F) | -60 |
| For Use With | CT-1002, CT-1003, CT-1090,CT-1123, CT-1160, CT-1170, CT-2300/ST WITH CD-090, CT-2500/L (CT-2523CH), CTFP-25, CTFP-40 |
| Wire Strip Length (mm) | 14 |
| Overall Length (mm) | 17 |
| Sub Brand | Pan-Term® |
| Overall Length (In.) | 0.67 |
| Maximum Operating Temperature (°C) | 105 |
| UL Temperature Rating (°C) | 105 |
| Maximum Wire Insulation Diameter (mm) | 2.8 |
| Maximum Operating Temperature (°F) | 221 |
| CSA Temperature Rating (°C) | 105 |
| Cover Material | Polypropylene |
| Finish/Coating | Tin-Plated |
| Maximum Wire Insulation Diameter (In.) | 0.11 |
| Ferrule Type | Twin Wire |
| Outer Diameter (In.) | 0.9 |
| Flammability Rating | UL94-HB |
| Color Code | Red |
| Minimum Metric Conductor Size (mm²) | 1 |
| Packaging Type | Bag |
| CSA Temperature Rating (°C) | 105 |
| Minimum Metric Conductor Size (mm²) | 1 |
| UL Temperature Rating (°C) | 105 |
| Minimum Operating Temperature (°F) | -60 |
| Minimum Operating Temperature (°C) | -54 |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Metric Conductor Size (mm²) | 1 |
| Maximum Operating Temperature (°F) | 221 |
| Package Quantity | 500 |
