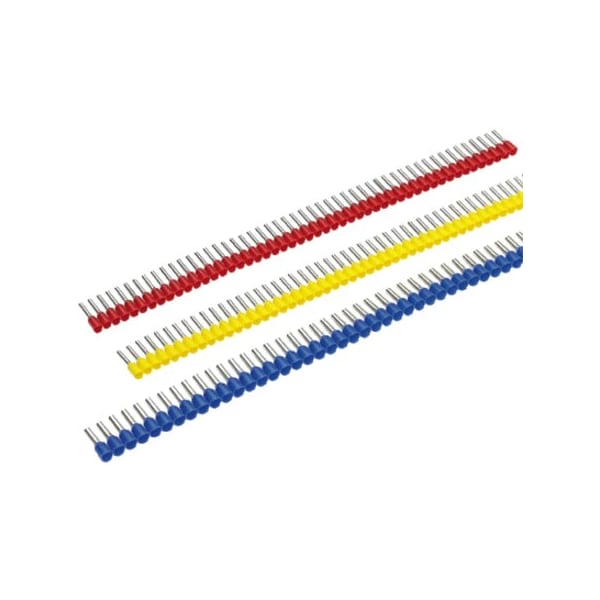

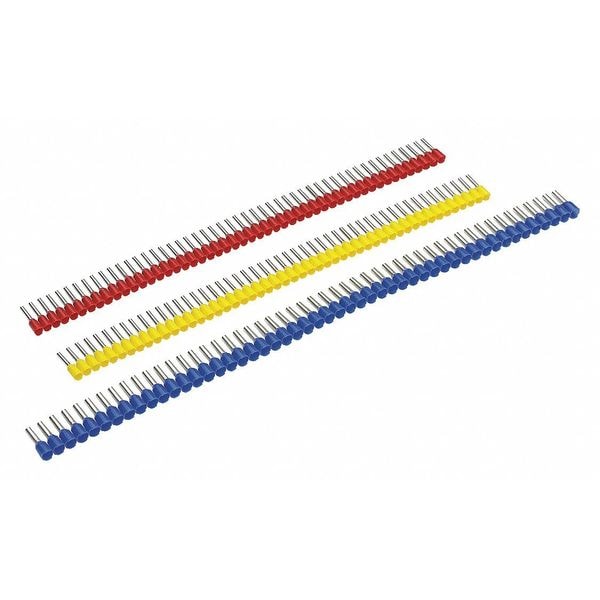

Ferrule, 20 AWG, PP, 13/32in., PK500
| Item | Ferrule |
|---|---|
| Wire Range | 20 AWG |
| Insulation Type | Self-Insulated |
| Insulation Color | White |
| Insertion Length | 13/32 in |
| Overall Length | 0.53 in |
| Max. Temp. | 221 Degrees F |
| Standards | CSA C22.2 No. 291-14, DIN 46228 Part 4 |
| Connection Material | Tinned |
| Features | Funnel Entry, Seamless Barrel, Suitable for Limited Space Applications, Type FSD |
| Color | White |
| Material | Copper |
| Length | 1/2 in |
| For Use With | CT-1000 |
| Finish | Tin-Plated |
| Termination Style | Crimp |
| Barrel Finish | Tin Plated |
| Barrel Length | 0.22 in |
| Ferrule Material | Copper |
| Minimum Wire Size | 20 AWG |
| Strip Length | 13/32 in |
| Maximum Conductors | 1 |
| Special Features | Funnel Entry, Seamless Barrel, Suitable for Limited Space Applications, Type FSD |
| Contact Material | Copper |
| Barrel Material | Copper |
| Maximum Operating Temperature | 221 deg F |
| Compatible with Product Type | Terminal Block |
| Insulation Material | Polypropylene |
| Barrel Diameter | 0.1 in |
| Contact Finish | Tin |
| Maximum Wire Size | 20 AWG |
| Ferrule Diameter | 0.06 in |
| Inside Dia. | 0.04 in |
| Product Material | Copper |
| Product Type | Electric Wire Ferrule |
| Environmentally Friendly | Yes |
| Product Name | Electric Wire Ferrule |
| Product Color | White |
| Outer Diameter (mm) | 1.4 |
| Minimum Copper Conductor Size (AWG) | #20 |
| Standards Met | DIN 46228 Part 4, CSA C22.2 No. 291-14 |
| Maximum Copper Conductor Size (AWG) | #20 |
| Pin Length (In.) | 0.31 |
| Packaging Type | Ferrules |
| Copper Conductor Size (AWG) | #20 |
| Base Material | Copper |
| CSA Temperature Rating (°C) | 105 |
| Flammability Rating | UL94-HB |
| Overall Length (mm) | 13.5 |
| Wire Strip Length (mm) | 10 |
| Overall Length (In.) | 0.53 |
| Maximum Operating Temperature (°F) | 221 |
| Wire Strip Length (In.) | 0.39 |
| Inside Diameter (mm) | 1.1 |
| Finish/Coating | Tin-Plated |
| Cover Material | Polypropylene |
| Inside Diameter (In.) | 0.04 |
| Maximum Metric Conductor Size (mm²) | 0.5 |
| Pin Length (mm) | 8 |
| Maximum Wire Insulation Diameter (mm) | 2.6 |
| Sub Brand | Pan-Term® |
| Ferrule Type | Single Wire Standard |
| Outer Diameter (In.) | 0.05 |
| Note | With 20 AWG wire only |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Wire Insulation Diameter (In.) | 0.1 |
| Color Code | White |
| Maximum Operating Temperature (°F) | 221 |
| CSA Temperature Rating (°C) | 105 |
| Maximum Metric Conductor Size (mm²) | 0.5 |
| Maximum Operating Temperature (°C) | 105 |
| Package Quantity | 500 |
