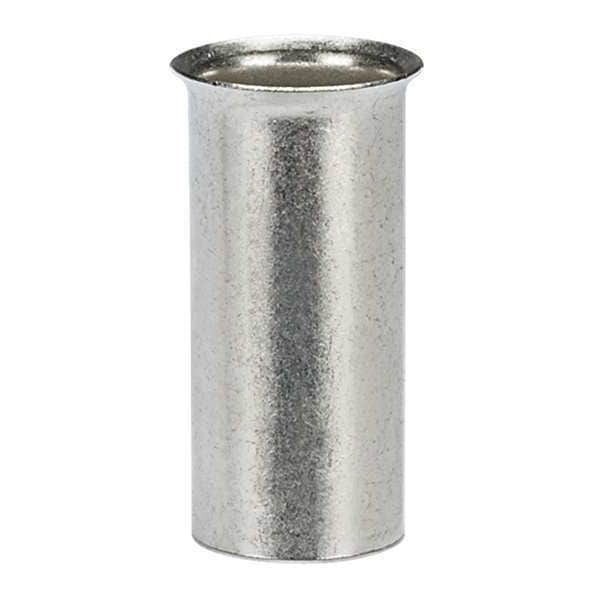

Férula, 4 AWG, sin aislante, 23/32 pulgadas, paquete de 100.
| Item | Ferrule |
|---|---|
| Wire Range | 4 AWG |
| Insulation Type | Non-Insulated |
| Insulation Color | Bare |
| Insertion Length | 23/32 in |
| Overall Length | 0.71 in |
| Max. Temp. | 302 Degrees F |
| Features | Funnel Entry, Seamless Barrel, Suitable for Limited Space Applications, Type F |
| Standards | CSA C22.2 No. 291-14, DIN 46228 Part 1 |
| Connection Material | Tinned |
| Length | 0.7 in |
| For Use With | CT-1005 |
| Material | Copper |
| Color | Metallic |
| Finish | Tin-Plated |
| Maximum Operating Temperature | 302 deg F |
| Compatible Manufacturer Model Number | CT-1005 |
| Special Features | Funnel Entry, Seamless Barrel, Suitable for Limited Space Applications, Type F |
| Barrel Finish | Tin Plated |
| Compatible with Product Type | Terminal Block |
| Barrel Material | Copper |
| Maximum Wire Size | 4 AWG |
| Contact Finish | Tin |
| Ferrule Diameter | 0.3 in |
| Ferrule Material | Copper |
| Contact Material | Copper |
| Minimum Wire Size | 4 AWG |
| Barrel Diameter | 0.3 in |
| Compatible with Series | CT |
| Maximum Conductors | 1 |
| Insulation Material | None |
| Strip Length | 23/32 in |
| Inside Dia. | 0.29 in |
| Product Name | Electric Wire Ferrule |
| Product Color | Metallic |
| Product Type | Electric Wire Ferrule |
| Product Material | Copper |
| Environmentally Friendly | Yes |
| Outer Diameter (In.) | 0.3 |
| Minimum Copper Conductor Size (AWG) | #4 |
| Inside Diameter (mm) | 7.3 |
| Standards Met | DIN 46228, CSA C22.2 No. 291-14, UL 486F, cULus 486F |
| Outer Diameter (mm) | 7.7 |
| Sub Brand | Pan-Term® |
| Maximum Operating Temperature (°F) | 302 |
| Wire Strip Length (In.) | 0.7188 |
| Maximum Operating Temperature (°C) | 150 |
| Overall Length (In.) | 0.71 |
| Color Code | Metallic |
| CSA Temperature Rating (°C) | 150 |
| Overall Length (mm) | 18 |
| Inside Diameter (In.) | 0.29 |
| Copper Conductor Size (AWG) | #4 |
| Finish/Coating | Tin-Plated |
| Ferrule Type | Single Wire Standard |
| Wire Strip Length (mm) | 18 |
| Packaging Type | Bag |
| Maximum Copper Conductor Size (AWG) | #4 |
| UL Temperature Rating (°C) | 150 |
| Maximum Metric Conductor Size (mm²) | 25 |
| Base Material | Copper |
| UL Temperature Rating (°C) | 150 |
| Maximum Operating Temperature (°C) | 150 |
| CSA Temperature Rating (°C) | 150 |
| Maximum Metric Conductor Size (mm²) | 25 |
| Maximum Operating Temperature (°F) | 302 |
| Package Quantity | 100 |
