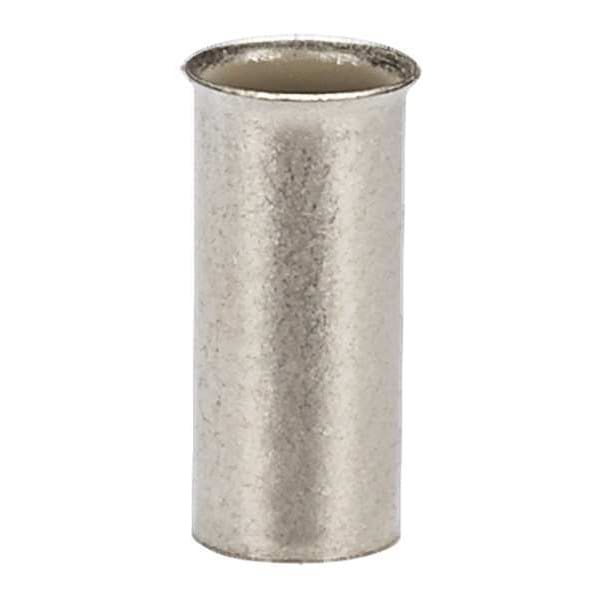

Ferrule, calibre 8 AWG, sin aislamiento, 15/32 pulgadas, paquete de 500.
| Item | Ferrule |
|---|---|
| Wire Range | 8 AWG |
| Insulation Type | Non-Insulated |
| Insulation Color | Bare |
| Insertion Length | 15/32 in |
| Overall Length | 0.47 in |
| Max. Temp. | 302 Degrees F |
| Connection Material | Tinned |
| Features | Funnel Entry, Seamless Barrel, Suitable for Limited Space Applications, Type F |
| Standards | CSA C22.2 No. 291-14l, DIN 46228, UL 486F |
| Finish | Tin-Plated |
| Length | 1/2 in |
| For Use With | CT-1003, CT-1004, CT-1090, CT-1123, CT-1104, CT-1160, CT-1170,CT-2300/ST (CD-090), CT-2500/L (CT-2504CH, CT-2523CH) |
| Color | Metallic |
| Material | Copper |
| Contact Finish | Tin |
| Maximum Conductors | 1 |
| Compatible Manufacturer Model Number | CT-1003, CT-1004, CT-1090, CT-1104, CT-1123, CT-1160, CT-1170, CT-2300/ST (CD-090), CT-2500/L (CT-2504CH, CT-2523CH) |
| Barrel Finish | Tin Plated |
| Compatible with Product Type | Terminal Block |
| Termination Style | Crimp |
| Maximum Wire Size | 8 AWG |
| Maximum Operating Temperature | 302 deg F |
| Compatible with Series | CT |
| Ferrule Material | Copper |
| Insulation Material | None |
| Barrel Diameter | 0.19 in |
| Barrel Material | Copper |
| Ferrule Diameter | 0.19 in |
| Contact Material | Copper |
| Minimum Wire Size | 8 AWG |
| Strip Length | 15/32 in |
| Minimum Operating Temperature | -60 Degrees F |
| Special Features | Funnel Entry, Seamless Barrel, Suitable for Limited Space Applications, Type F |
| Inside Dia. | 0.18 in |
| Product Type | Electric Wire Ferrule |
| Product Material | Copper |
| Environmentally Friendly | Yes |
| Product Color | Metallic |
| Product Name | Electric Wire Ferrule |
| Packaging Type | Bag |
| Copper Conductor Size (AWG) | #8 |
| Color Code | Metallic |
| Maximum Copper Conductor Size (AWG) | #8 |
| UL Temperature Rating (°C) | 150 |
| Minimum Operating Temperature (°F) | -60 |
| Pin Length (mm) | 12 |
| Pin Length (In.) | 0.47 |
| Maximum Operating Temperature (°F) | 302 |
| Wire Strip Length (In.) | 0.4688 |
| Ferrule Type | Single Wire Standard |
| Inside Diameter (In.) | 0.18 |
| Base Material | Copper |
| Overall Length (mm) | 12 |
| Sub Brand | Pan-Term® |
| Minimum Operating Temperature (°C) | -54 |
| Outer Diameter (In.) | 0.19 |
| Inside Diameter (mm) | 4.5 |
| Minimum Metric Conductor Size (mm²) | 10 |
| Standards Met | DIN 46228, CSA C22.2 No. 291-14, UL 486F, cULus 486F |
| Overall Length (In.) | 0.47 |
| Maximum Operating Temperature (°C) | 150 |
| Minimum Copper Conductor Size (AWG) | #8 |
| Maximum Metric Conductor Size (mm²) | 10 |
| CSA Temperature Rating (°C) | 150 |
| Outer Diameter (mm) | 4.9 |
| Finish/Coating | Tin-Plated |
| Wire Strip Length (mm) | 12 |
| Maximum Metric Conductor Size (mm²) | 10 |
| Minimum Operating Temperature (°F) | -60 |
| Maximum Operating Temperature (°F) | 302 |
| Minimum Metric Conductor Size (mm²) | 10 |
| CSA Temperature Rating (°C) | 150 |
| UL Temperature Rating (°C) | 150 |
| Minimum Operating Temperature (°C) | -54 |
| Maximum Operating Temperature (°C) | 150 |
| Package Quantity | 500 |
