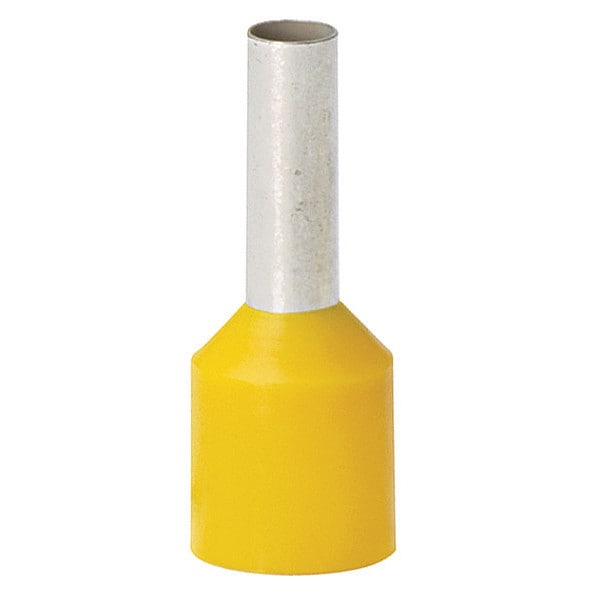

Ferrule, aislante, estañado, calibre 10, 12mm de pin, amarillo, paquete con 100.
| Item | Ferrule,Ins,Shtct,10Awg,12mmpin,Yl,PK100 |
|---|---|
| Wire Range | 10 AWG |
| Overall Length | 0.91 in |
| Max. Temp. | 105°C |
| Standards | DIN 46228, CSA C22.2 No. 291-14, UL 486F, cULus 486F |
| Color | Yellow |
| Length | 0.9 in |
| Finish | Tin-Plated |
| Material | Copper |
| Inside Dia. | 0.14 in |
| Product Name | Electric Wire Ferrule |
| Material Details | Copper - Base, Polypropylene - Insulation |
| Product Type | Electric Wire Ferrule |
| Product Material | Copper, Polypropylene |
| Product Color | Yellow |
| Product Class | Wire Termination |
| Max Operating Temperature | 105 degrees Celsius |
| Outside Diameter Inches | 0.16 in |
| Package Quantity | 100 |
