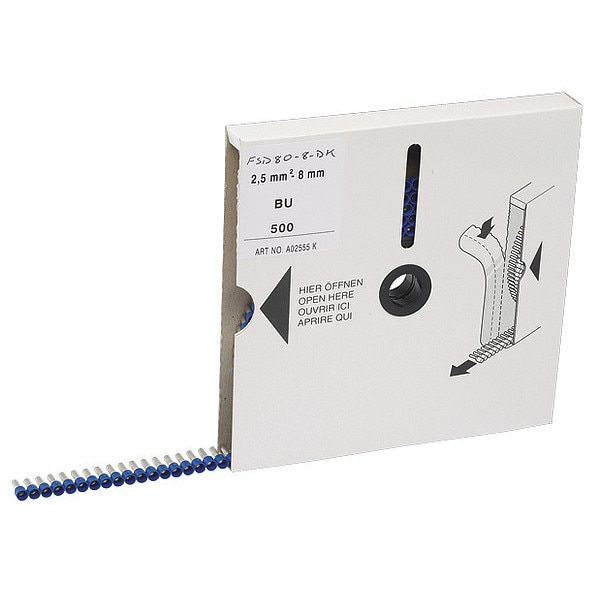

Ferrule, aislante, calibre 14 AWG, 8mm de pasador, color azul, paquete con 500 piezas.
| Item | Ferrule,Insul,14 Awg,8mmpin,Bu,PK500 |
|---|---|
| Wire Range | 14 AWG |
| Overall Length | 0.57 in |
| Max. Temp. | 105°C |
| Standards | DIN 46228 Part 4, CSA C22.2 No. 291-14, cULus E472545 |
| Material | Copper |
| Finish | Tin-Plated |
| Color | Blue |
| Inside Dia. | 0.09 in |
| Maximum Wire Insulation Diameter (In.) | 0.15 |
| Finish/Coating | Tin-Plated |
| Maximum Copper Conductor Size (AWG) | #14 |
| Wire Strip Length (mm) | 10 |
| Base Material | Copper |
| Flammability Rating | UL94-HB |
| CSA Temperature Rating (°C) | 105 |
| Inside Diameter (mm) | 2.3 |
| Outer Diameter (mm) | 2.6 |
| Maximum Operating Temperature (°F) | 221 |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Metric Conductor Size (mm²) | 2.5 |
| Pin Length (mm) | 8 |
| Packaging Type | Ferrules |
| Maximum Wire Insulation Diameter (mm) | 3.9 |
| Product Type | Covered Wire Ferrule |
| Standards Met | DIN 46228 Part 4, CSA C22.2 No. 291-14, cULus E472545 |
| Color Code | Blue |
| Overall Length (mm) | 14.5 |
| For Use With | CP-881, APM-MRSP1516JMD |
| Ferrule Type | Single Wire Standard |
| Inside Diameter (In.) | 0.09 |
| Copper Conductor Size (AWG) | #14 |
| Outer Diameter (In.) | 0.1 |
| Wire Strip Length (In.) | 0.39 |
| Pin Length (In.) | 0.31 |
| Cover Material | Polypropylene |
| Minimum Copper Conductor Size (AWG) | #14 |
| Overall Length (In.) | 0.57 |
| Sub Brand | Reel Smart™ |
| Product Class | Wire Termination |
| Min Operating Temperature | -51 degrees Celsius |
| Outside Diameter Inches | 0.1 in |
| Max Operating Temperature | 105 degrees Celsius |
| Package Quantity | 500 |
