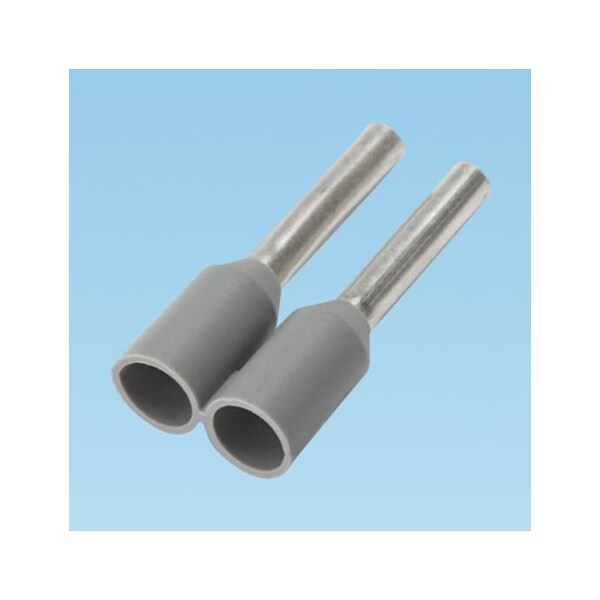

Casquillo, aislado, calibre 18 AWG, paquete de 3000 piezas.
| Item | Ferrule,Insulated,18 AWG,PK3000 |
|---|---|
| Wire Range | 18 AWG |
| Overall Length | 0.57 in |
| Max. Temp. | 105°C |
| Standards | DIN 46228 Part 4, CSA C22.2 No. 291-14, cULus E472545 |
| Inside Dia. | 0.05 in |
| Finish | Tin-Plated |
| Material | Copper |
| Color | Gray |
| Length | 0.6 in |
| Material Details | Copper - Base, Polypropylene - Insulation |
| Product Material | Copper, Polypropylene |
| Product Color | Gray |
| Product Name | Electric Wire Ferrule |
| Product Type | Electric Wire Ferrule |
| Outside Diameter Inches | 0.06 in |
| Product Class | Wire Termination |
| Min Operating Temperature | -51 degrees Celsius |
| Max Operating Temperature | 105 degrees Celsius |
| Package Quantity | 3000 |
