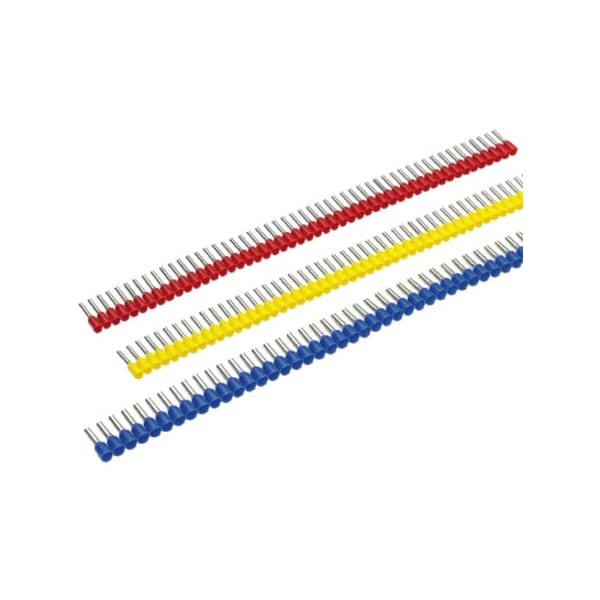

Terminal, aislado, calibre 18 AWG, paquete con 500 unidades.
| Item | Ferrule,Insulated,18 AWG,PK500 |
|---|---|
| Wire Range | 18 AWG |
| Overall Length | 0.55 in |
| Max. Temp. | 105°C |
| Standards | DIN 46228 Part 4, CSA C22.2 No. 291-14 |
| Inside Dia. | 0.05 in |
| Finish | Tin-Plated |
| Material | Copper |
| Color | Gray |
| For Use With | CT-1000 |
| Length | 0.6 in |
| Maximum Metric Conductor Size (mm²) | 0.75 |
| Color Code | Gray |
| Outer Diameter (In.) | 0.06 |
| Maximum Operating Temperature (°C) | 105 |
| Wire Strip Length (mm) | 10 |
| Copper Conductor Size (AWG) | #18 |
| Standards Met | DIN 46228 Part 4, CSA C22.2 No. 291-14 |
| Maximum Wire Insulation Diameter (mm) | 2.7 |
| Pin Length (In.) | 0.31 |
| Product Type | Covered Wire Ferrule |
| Ferrule Type | Single Wire Standard |
| CSA Temperature Rating (°C) | 105 |
| Base Material | Copper |
| Inside Diameter (In.) | 0.05 |
| Outer Diameter (mm) | 1.6 |
| Flammability Rating | UL94-HB |
| Maximum Operating Temperature (°F) | 221 |
| Pin Length (mm) | 8 |
| Maximum Wire Insulation Diameter (In.) | 0.11 |
| Sub Brand | Pan-Term® |
| Wire Strip Length (In.) | 0.39 |
| Cover Material | Polypropylene |
| Packaging Type | Ferrules |
| Inside Diameter (mm) | 1.3 |
| Minimum Copper Conductor Size (AWG) | #18 |
| Finish/Coating | Tin-Plated |
| Overall Length (mm) | 14 |
| Overall Length (In.) | 0.55 |
| Maximum Copper Conductor Size (AWG) | #18 |
| Product Color | Gray |
| Product Name | Electric Wire Ferrule |
| Material Details | Copper - Base, Polypropylene - Insulation |
| Product Material | Copper, Polypropylene |
| Product Class | Wire Termination |
| Max Operating Temperature | 105 degrees celsius |
| Package Quantity | 500 |
