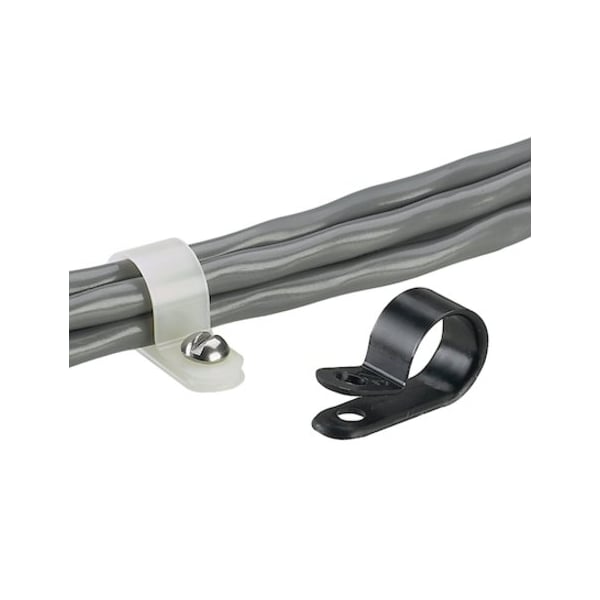

Fixed Diameter Clamp, No.8, Black, PK1000
| Item | Fixed Diameter Clamp,No.8,Black,PK1000 |
|---|---|
| Color | Black |
| Length | 0.43 in |
| Width | 0.37 in |
| Material | Weather Resistant Nylon 6.6 |
| Height | 0.19 in |
| Application | For securing wires and cables via fixed diameter clamping |
| Overall Length | 0.43 in |
| Overall Length (mm) | 14.6 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Flange Thickness (In.) | 0.05 |
| Product Type | Cable Clamp |
| Overall Height (In.) | 0.29 |
| Maximum Flange Thickness (mm) | 1.3 |
| Overall Height (mm) | 7.4 |
| Maximum Bundle Diameter (In.) | 0.19 |
| Mounting Hole Diameter (mm) | 4.2 |
| Environment | Indoor, Outdoor |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Overall Width (In.) | 0.37 |
| Resistance Properties | Weather Resistant |
| Mount Method | Screw |
| Mounting Hole Diameter (In.) | 0.167 |
| Maximum Bundle Diameter (mm) | 4.8 |
| Overall Width (mm) | 9.4 |
| Overall Length (In.) | 0.575 |
| Maximum Operating Temperature (°F) | 185 |
| Product Material | Nylon 6.6 |
| Cable Manager Type | Cable Clamp |
| Product Color | Black |
| Product Name | Cable Clamp |
| Max Operating Temperature | 85 degrees celsius |
| Min Operating Temperature | -60 degrees celsius |
| Product Class | Cable & Conduit Clamps |
| Package Quantity | 1000 |
