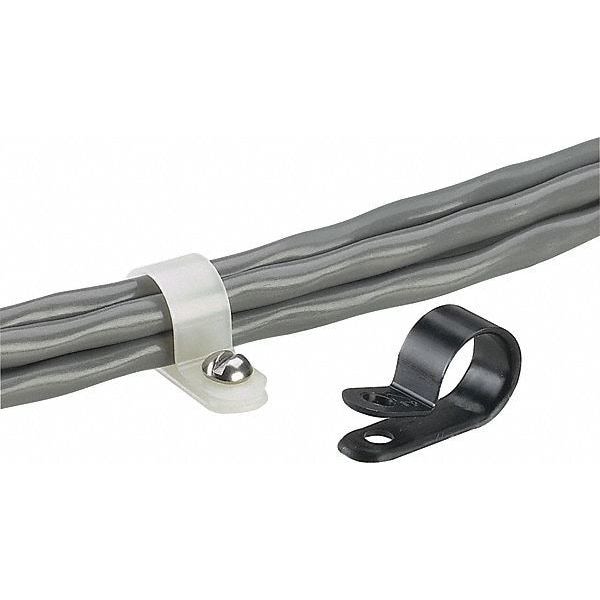

Fixed Diameter Clamp, No.8, White, PK100
| Item | Fixed Diameter Clamp,No.8,White,PK100 |
|---|---|
| Color | Natural |
| Width | 0.37 in |
| Height | 0.38 in |
| Material | Nylon 6.6 |
| Overall Width (In.) | 0.37 |
| Product Type | Cable Clamp |
| Maximum Flange Thickness (mm) | 1.3 |
| Maximum Bundle Diameter (mm) | 9.6 |
| Overall Height (In.) | 0.48 |
| Mount Method | Screw |
| Maximum Bundle Diameter (In.) | 0.38 |
| Minimum Operating Temperature (°C) | -60 |
| Application | For securing wires and cables via fixed diameter clamping |
| Overall Length (mm) | 21.05 |
| Mounting Hole Diameter (mm) | 4.2 |
| Overall Width (mm) | 9.4 |
| Overall Height (mm) | 12.1 |
| Maximum Operating Temperature (°F) | 185 |
| Mounting Hole Diameter (In.) | 0.167 |
| Minimum Operating Temperature (°F) | -76 |
| Environment | Indoor |
| Maximum Operating Temperature (°C) | 85 |
| Overall Length (In.) | 0.83 |
| Maximum Flange Thickness (In.) | 0.05 |
| Additional Information | Environment: Indoors, Metric Screw Size: M4, Bundle Offset: 0.59 Inch, Diameter: 0.17 Inch, Type Of Application: Standard |
| Cable Manager Type | Cable Clamp |
| Product Material | Nylon 6.6 |
| Product Name | Fixed Diameter Cable Clamp |
| Product Color | Natural |
| Max Operating Temperature | 85 degrees celsius |
| Overall Length | 0.59 in |
| Min Operating Temperature | -60 degrees celsius |
| Product Class | Wire Routing, Management & Protection |
| Package Quantity | 100 |
