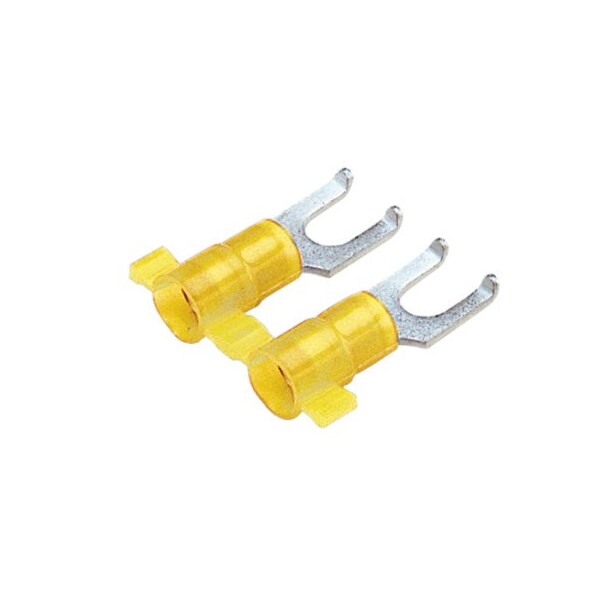

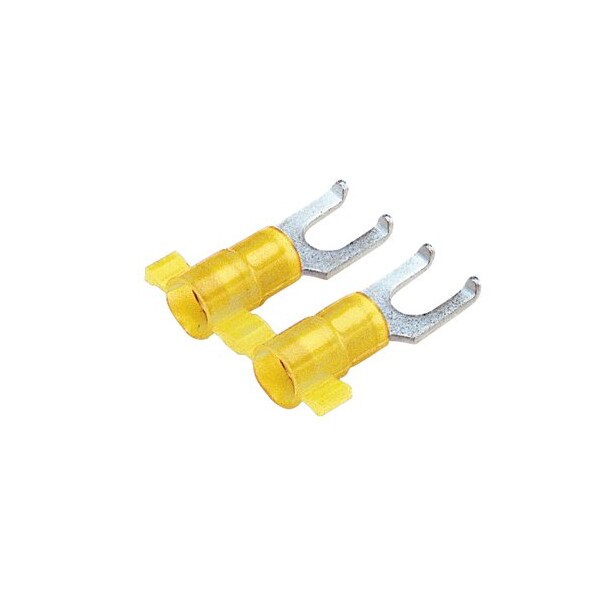

Flanged Fork Terminal, nylon insulated,
| Wire Range | 12 to 10 AWG |
|---|---|
| Insulation Type | Nylon |
| Stud Size | #10 |
| Insulation Color | Yellow |
| Tongue Width - Wire Connector | 0.38 in |
| Seam | Butted, Grip Sleeved |
| Overall Length | 1.05 in |
| Connection Material | Copper |
| Features | Flame Retardant, Molded |
| Max. Temp. | 221 deg F |
| Item | Flanged Fork Terminal |
| Max. Voltage | 600 V |
| Terminal Type | Fork Terminals |
| Standards | UL Listed 587H E52164; CSA Certified LR31212 |
| Length | 1.1 in |
| Finish | Tin-Plated |
| Width | 0.4 in |
| Insulation Dia | 0.225 in |
| Insulation Material | Nylon, Metal |
| Product Name | Terminal Connector |
| Connector Details | 1 x (Fork Terminal) |
| Product Type | Terminal Connector |
| Connector Plating | Tin |
| Product Color | Yellow |
| Product Material | Copper |
| Max Operating Temperature | 105 degrees celsius |
| Barrel Type | Grip Sleeve |
| Color Coding | Yellow |
| Product Class | Wire Termination |
| Package Quantity | 2000 |
