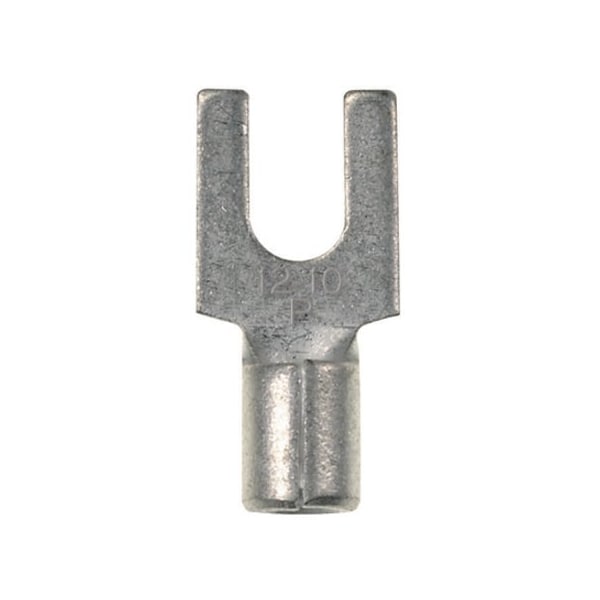

Tenedor sin aislamiento, calibre 12-10, #10, paquete de 500.
| Item | Fork Non-Insul,12-10 Awg,#10,PK500 |
|---|---|
| Wire Range | 18 (Sol)/10 (Str) to 12 |
| Insulation Type | Non-Insulated |
| Overall Length | 0.78 in |
| Max. Temp. | 150°C |
| Features | Standard Barrel Type; Standard Fork; Brazed Seam |
| Standards | UL Listed 587H E52164; CSA Certified LR31212 |
| Finish | Tin-Plated |
| Length | 0.8 in |
| Color | Metallic |
| Material | Copper |
| Width | 0.4 in |
| Width (In.) | 0.37 |
| Inside Dia. | 0.13 in |
| Product Material | Copper |
| Connector Plating | Tin |
| Product Type | Terminal Connector |
| Connector Details | 1 x Fork Terminal |
| Product Name | Terminal Connector |
| Barrel Type | Beveled |
| Product Class | Fork Terminals |
| Max Operating Temperature | 150 degrees celsius |
| Package Quantity | 500 |
