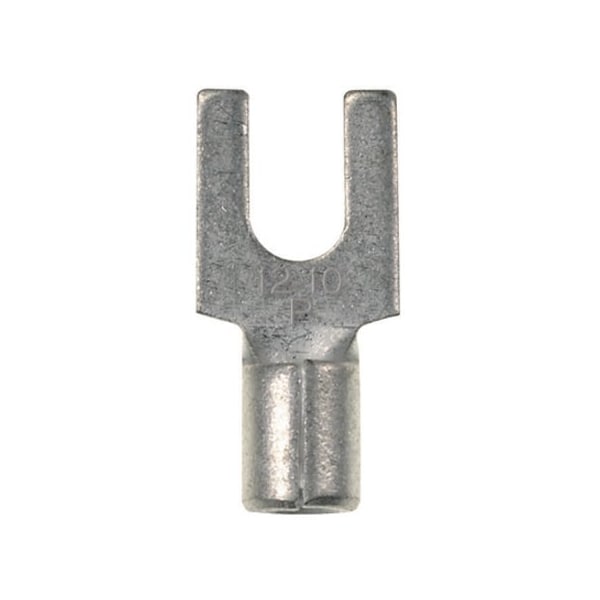

Horquilla, Sin Aislamiento, 16-14 Awg, #10, Paquete de 1000
| Item | Fork,Non-Insul,16-14 Awg,#10,PK1000 |
|---|---|
| Wire Range | 18 to 14 AWG |
| Insulation Type | Non-Insulated |
| Overall Length | 0.71 in |
| Max. Temp. | 150°C |
| Features | Standard Entry Barrel; Brazed Seam Barrel Type; Standard Fork; Brazed Seam |
| Standards | C22.2 No.65; UL486A-486B |
| Material | Copper |
| Width | 0.3 in |
| Color | Metallic |
| Finish | Tin-Plated |
| Length | 0.7 in |
| Width (In.) | 0.34 |
| Length (In.) | 0.71 |
| Product Material | Copper |
| Connector Plating | Tin |
| Connector Details | 1 x Fork Terminal |
| Product Type | Terminal Connector |
| Product Name | Terminal Connector |
| Barrel Type | Brazed |
| Outside Diameter Inches | 0.14 in |
| Product Class | Wire Termination |
| Max Operating Temperature | 150 degrees celsius |
| Package Quantity | 1000 |
