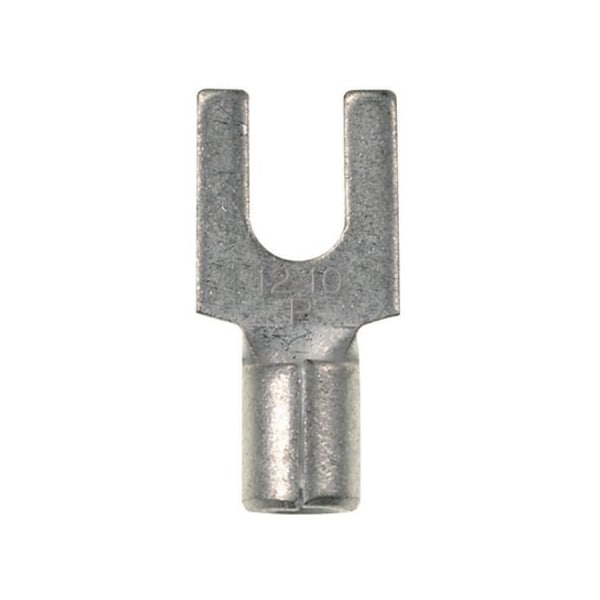

Horquilla, no aislada, calibre 22-16, #6, NRW, paquete de 1000
| Item |
Fork,Non-Insul,22-16 Awg,#6,Nrw,PK1000 |
| Wire Range |
22 to 16 AWG |
| Insulation Type |
Non-Insulated |
| Overall Length |
0.63 in |
| Max. Temp. |
150°C |
| Features |
Standard Entry Barrel; Brazed Seam Barrel Type; Narrow Fork; Narrow Tongue, Brazed Seam |
| Standards |
C22.2 No.65; UL486A-486B |
| Material |
Copper |
| Length |
0.6 in |
| Width |
0.2 in |
| Finish |
Tin-Plated |
| Color |
Metallic |
| Length (In.) |
0.63 |
| Width (In.) |
0.24 |
| Connector Plating |
Tin |
| Product Type |
Terminal Connector |
| Product Material |
Copper |
| Product Name |
Terminal Connector |
| Connector Details |
1 x Fork Terminal |
| Product Class |
Wire Termination |
| Max Operating Temperature |
150 degrees celsius |
| Barrel Type |
Brazed |
| Outside Diameter Inches |
0.14 in |
| Package Quantity |
1000 |
