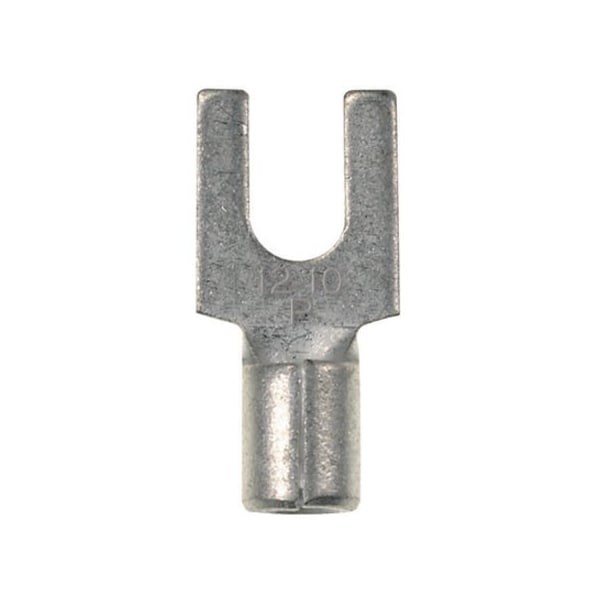

Fork, Non-Insul, 22-16 Awg, #8 Stud, PK100
| Item | Fork,Non-Insul,22-16 Awg,#8 Stud,PK100 |
|---|---|
| Wire Range | 22 to 16 AWG |
| Insulation Type | Non-Insulated |
| Overall Length | 0.69 in |
| Max. Temp. | 150°C |
| Standards | UL Listed 587H E52164; CSA Certified LR31212 |
| Features | Standard Barrel Type; Standard Fork; Brazed Seam |
| Finish | Tin-Plated |
| Length | 0.7 in |
| Width | 0.3 in |
| Material | Copper |
| Color | Metallic |
| Inside Dia. | 0.07 in |
| Width (In.) | 0.32 |
| Product Material | Copper |
| Connector Details | 1 x Fork Terminal |
| Product Name | Terminal Connector |
| Product Type | Terminal Connector |
| Connector Plating | Tin |
| Product Class | Fork Terminals |
| Barrel Type | Brazed |
| Package Quantity | 100 |
