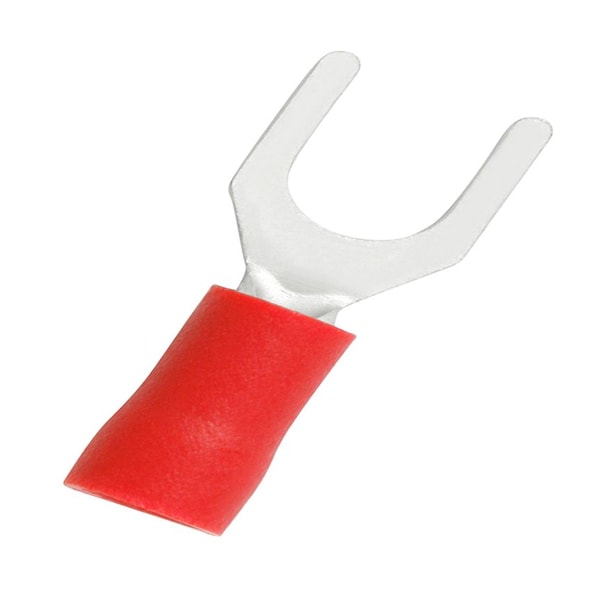

Fork Term, 22, 16 Awg, PK25
| Wire Range | 22 to 16 AWG |
|---|---|
| Insulation Type | Vinyl |
| Stud Size | M6 |
| Insulation Color | Red |
| Item | Fork Term,22,16 Awg,PK25 |
| Features | Funnel Entry |
| Max. Voltage | 600 V |
| Overall Length | 0.83 in |
| Terminal Type | Standard |
| Connection Material | Copper |
| Seam | Butted |
| Standards | UL Listed 20U0, E52164 |
| Max. Temp. | 221 deg F |
| Finish | Tin-Plated |
| Width | 0.37 in |
| Tongue Width - Wire Connector | 0.37 in |
| Insulation Dia | 0.15 in |
| Max Operating Temperature | 105 degrees celsius |
| Color Coding | Red |
| Product Class | Wire Termination |
| Package Quantity | 25 |
