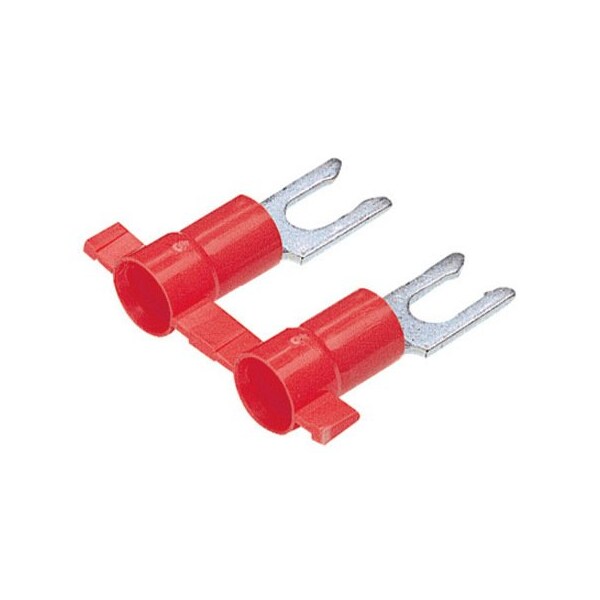

Horquilla terminal, Lkg, Vyl, 22, calibre 18, #6, paquete de 3000
| Item | Fork Term,Lkg,Vyl,22,18Awg,#6Stud,PK3000 |
|---|---|
| Wire Range | 22 to 18 AWG |
| Insulation Type | Vinyl |
| Overall Length | 0.8 in |
| Max. Temp. | 105°C |
| Features | Funnel Barrel Type; Locking Fork; Butted Seam |
| Standards | UL Listed 587H E52164; CSA Certified LR31212 |
| Finish | Tin-Plated |
| Color | Red |
| Material | Copper |
| Width | 0.3 in |
| Length | 0.8 in |
| Width (In.) | 0.27 |
| Product Type | Terminal Connector |
| Product Material | Copper |
| Connector Details | 1 x Fork Terminal |
| Insulation Material | Vinyl, Plastic |
| Connector Plating | Tin |
| Product Name | Terminal Connector |
| Product Color | Red |
| Barrel Type | Funnel |
| Product Class | Fork Terminals |
| Max Operating Temperature | 105 degrees celsius |
| Package Quantity | 3000 |
