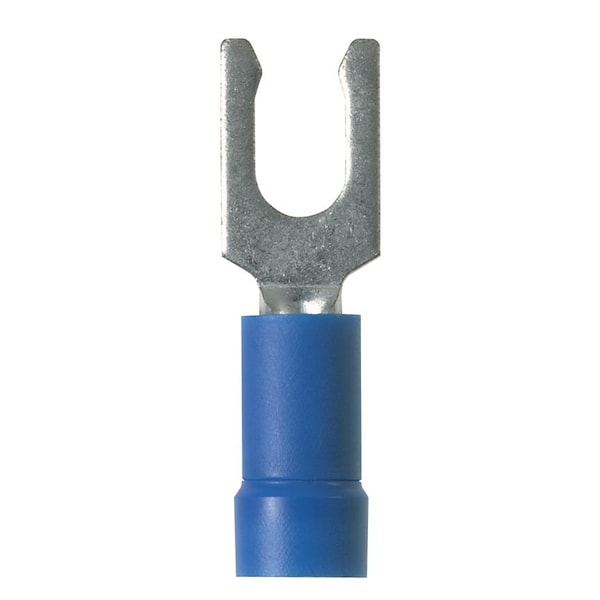

Horquilla terminal, bloqueo, vinil, aislado, paquete de 50.
| Item | Fork Term,Lkg,Vyl,Insulated,PK50 |
|---|---|
| Wire Range | 16 to 14 AWG |
| Insulation Type | Vinyl |
| Overall Length | 0.97 in |
| Max. Temp. | 105°C |
| Features | Funnel Barrel Type; Locking Fork; Butted Seam |
| Standards | UL Listed 587H E52164; CSA Certified LR31212 |
| Width | 0.33 in |
| Finish | Tin-Plated |
| Material | Copper |
| Color | Blue |
| Width (In.) | 0.33 |
| Product Class | Wire Termination |
| Max Operating Temperature | 105 degrees celsius |
| Barrel Type | Beveled |
| Package Quantity | 50 |
