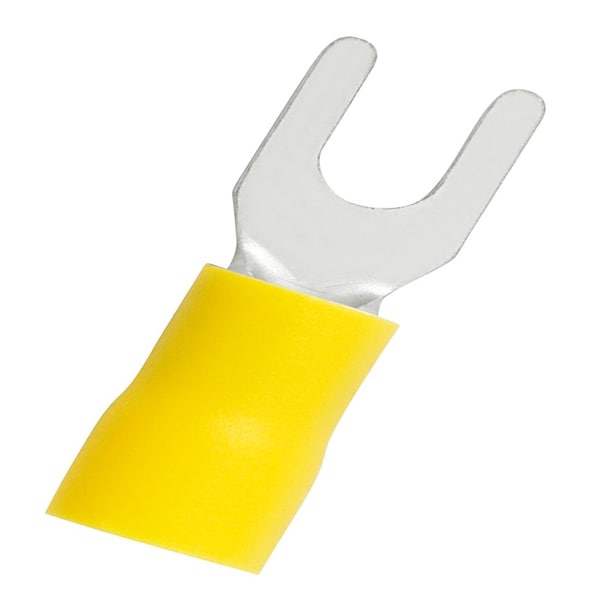

Fork Term, Narr, Vyl, Insul, 12, PK25
| Wire Range | 12 to 10 AWG |
|---|---|
| Insulation Type | Vinyl |
| Stud Size | #8 |
| Insulation Color | Yellow |
| Item | Fork Term,Narr,Vyl,Insul,12,PK25 |
| Connection Material | Copper |
| Seam | Butted |
| Standards | UL Listed 587H E52164; CSA Certified LR31223 |
| Max. Voltage | 600 V |
| Max. Temp. | 221 deg F |
| Features | Funnel Entry |
| Terminal Type | Fork Terminals |
| Overall Length | 1 in |
| Width | 0.33 in |
| Finish | Tin-Plated |
| Tongue Width - Wire Connector | 0.33 in |
| Insulation Dia | 0.24 in |
| Product Class | Wire Termination |
| Max Operating Temperature | 105 degrees celsius |
| Color Coding | Yellow |
| Package Quantity | 25 |
