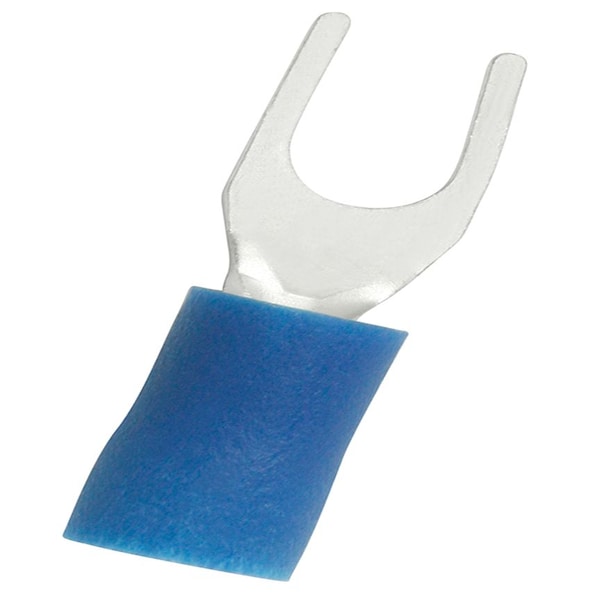

Tenedor Terminal, Narr, Vyl, Aislante, 16, paquete de 25
| Wire Range | 16 to 14 AWG |
|---|---|
| Insulation Type | Vinyl |
| Stud Size | M3.5 |
| Insulation Color | Blue |
| Item | Fork Term,Narr,Vyl,Insul,16,PK25 |
| Max. Voltage | 600 V |
| Features | Funnel Entry |
| Overall Length | 0.83 in |
| Terminal Type | Fork Terminals |
| Standards | UL Listed 20U0, E52164 |
| Connection Material | Copper |
| Max. Temp. | 221 deg F |
| Seam | Butted |
| Finish | Tin-Plated |
| Width | 0.22 in |
| Tongue Width - Wire Connector | 0.22 in |
| Insulation Dia | 0.17 in |
| Color Coding | Blue |
| Max Operating Temperature | 105 degrees celsius |
| Product Class | Wire Termination |
| Package Quantity | 25 |
