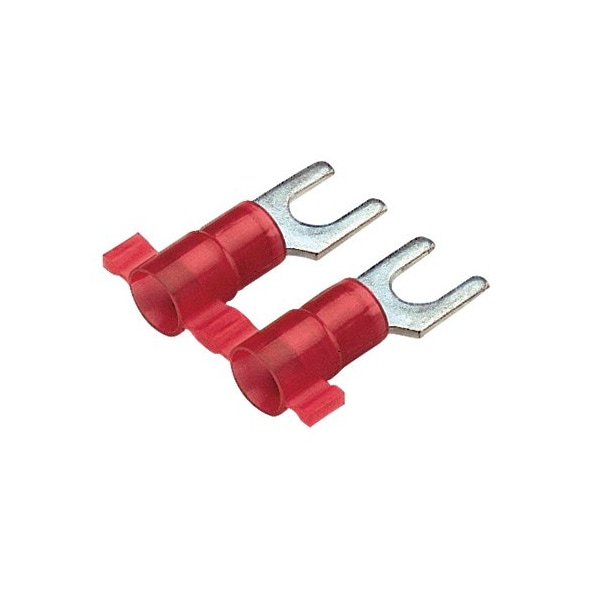

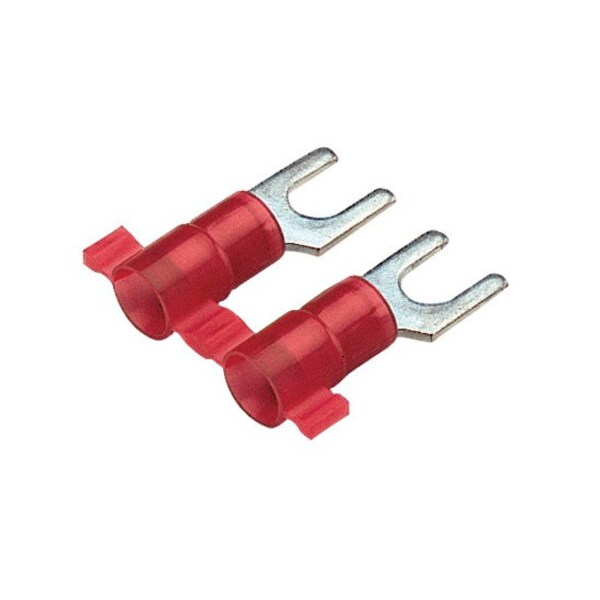

Fork Term, narrow tongue, Nyln Insul, 22 - 18, PN18-6FN-3K, PK 3000
| Wire Range | 22 to 18 AWG |
|---|---|
| Insulation Type | Nylon |
| Stud Size | #6 |
| Insulation Color | Red |
| Terminal Type | Fork Terminals |
| Overall Length | 0.78 in |
| Tongue Width - Wire Connector | 1/4 in |
| Features | Butted Seam, Insulated |
| Standards | UL Listed 587H E52164; CSA Certified LR31212 |
| Max. Temp. | 221 deg F |
| Max. Voltage | 600 V |
| Seam | Butted, Grip Sleeved |
| Item | Fork Terminal |
| Connection Material | Copper |
| Width | 0.3 in |
| Length | 0.8 in |
| Finish | Tin-Plated |
| Insulation Dia | 0.15 in |
| Product Color | Red |
| Diameter | 0.2" |
| Product Type | Terminal Connector |
| Connector Details | 2 x (Fork Terminal) |
| Insulation Material | Nylon |
| Product Name | Terminal Connector |
| Product Material | Copper, Nylon |
| Connector Plating | Tin |
| Color Coding | Red |
| Product Class | Wire Termination |
| Max Operating Temperature | 105 degrees celsius |
| Barrel Type | Grip Sleeve |
| Package Quantity | 3000 |
