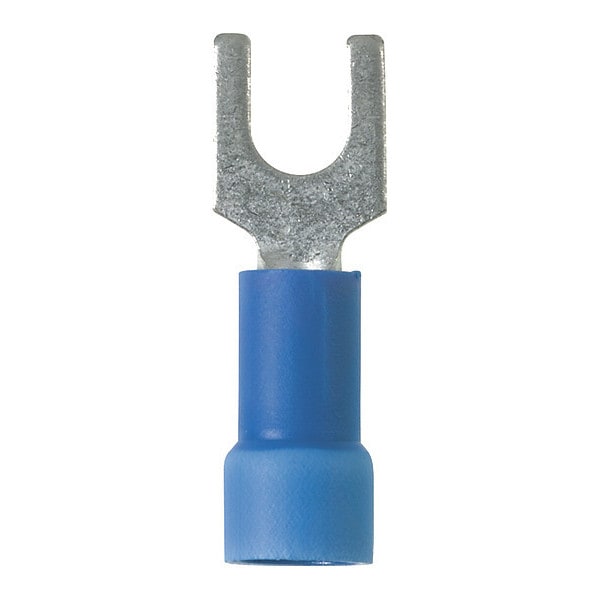

Terminal para horquilla, Vyl, 16, calibre 14, conector #8, paquete de 100 unidades.
| Item | Fork Term,Vyl,16,14 Awg,#8 Stud,PK100 |
|---|---|
| Wire Range | 18 to 14 AWG |
| Insulation Type | Vinyl |
| Overall Length | 0.96 in |
| Max. Temp. | 105°C |
| Standards | C22.2 No.65; UL486A-486B |
| Features | Expanded Entry Barrel; Brazed Seam with Insulation Support Barrel Type; Standard Fork; Insulation Support |
| Color | Blue |
| Finish | Tin-Plated |
| Width | 0.3 in |
| Length | 1 in |
| Material | Copper |
| Length (In.) | 0.96 |
| Surface Finish | Tinned |
| Width (In.) | 0.31 |
| Product Color | Blue |
| Diameter | 0.2 in |
| Insulation Material | Vinyl |
| Connector Plating | Tin |
| Connector Details | 1 x Fork Terminal |
| Product Type | Terminal Connector |
| Product Name | Terminal Connector |
| Product Material | Copper, Vinyl |
| Max Operating Temperature | 105 degrees celsius |
| Product Class | Wire Termination |
| Barrel Type | Funnel |
| Package Quantity | 100 |
