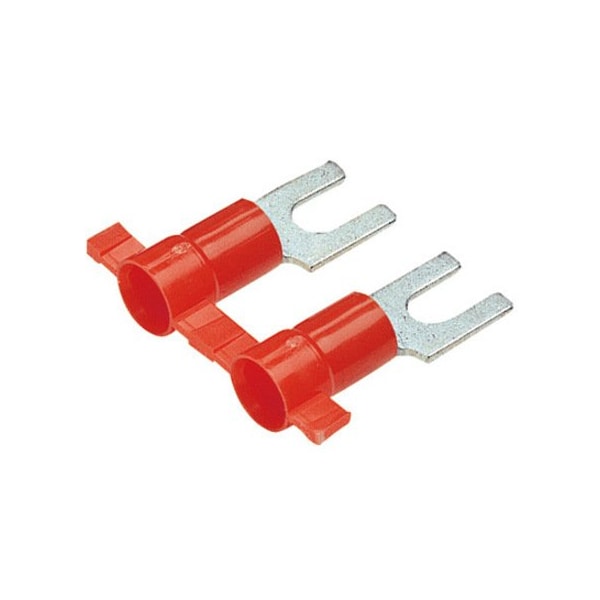

Horquilla Terminad, Vinilo, 22, 18 AWG, Perno #10, Paquete de 3000
| Item | Fork Term,Vyl,22,18 Awg,#10 Stud,PK3000 |
|---|---|
| Wire Range | 22 to 18 AWG |
| Insulation Type | Vinyl |
| Overall Length | 0.86 in |
| Max. Temp. | 105°C |
| Standards | UL Listed 587H E52164; CSA Certified LR31212 |
| Features | Funnel Barrel Type; Standard Fork; Butted Seam |
| Width | 0.4 in |
| Finish | Tin-Plated |
| Material | Copper |
| Length | 0.9 in |
| Color | Red |
| Width (In.) | 0.35 |
| Diameter | 0.2 in |
| Product Material | Copper, Vinyl |
| Connector Plating | Tin |
| Product Color | Red |
| Product Type | Terminal Connector |
| Insulation Material | Vinyl |
| Connector Details | 1 x Fork Terminal |
| Product Name | Terminal Connector |
| Product Class | Wire Termination |
| Barrel Type | Funnel |
| Max Operating Temperature | 105 degrees celsius |
| Package Quantity | 3000 |
