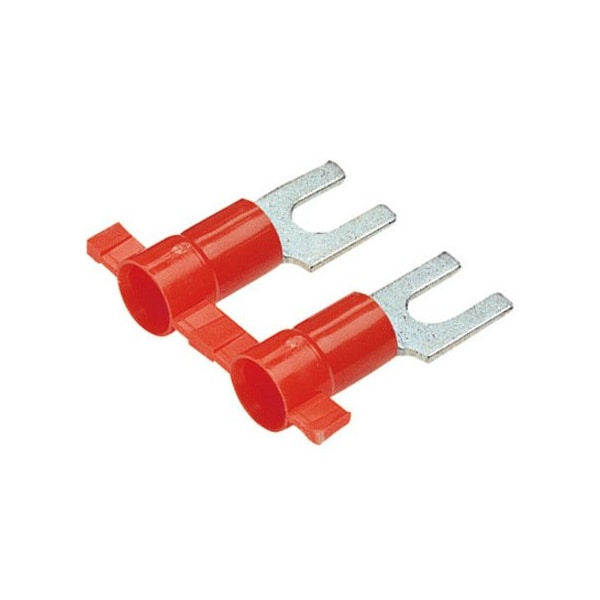

Término de horquilla, de Vinilo, calibre 22, calibre 18, calibre AWG, terminal de ojal #8, paquete de 3000.
| Item | Fork Term,Vyl,22,18 Awg,#8 Stud,PK3000 |
|---|---|
| Wire Range | 22 to 18 AWG |
| Insulation Type | Vinyl |
| Overall Length | 0.84 in |
| Max. Temp. | 105°C |
| Features | Funnel Barrel Type; Standard Fork; Butted Seam |
| Standards | UL Listed 587H E52164; CSA Certified LR31212 |
| Material | Copper |
| Length | 0.8 in |
| Finish | Tin-Plated |
| Width | 0.3 in |
| Color | Red |
| Width (In.) | 0.32 |
| Product Type | Terminal Connector |
| Product Material | Copper, Vinyl |
| Product Name | Terminal Connector |
| Diameter | 0.2 in |
| Product Color | Red |
| Connector Details | 2 x Fork Terminal |
| Insulation Material | Vinyl |
| Connector Plating | Tin |
| Max Operating Temperature | 105 degrees celsius |
| Barrel Type | Funnel |
| Product Class | Fork Terminals |
| Package Quantity | 3000 |
