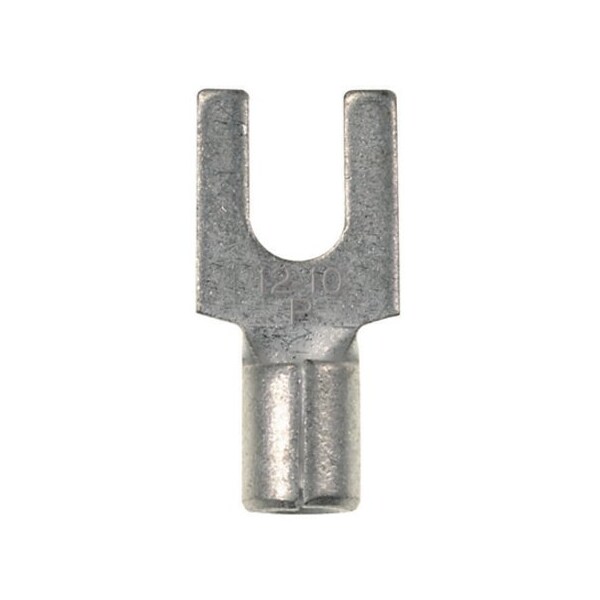

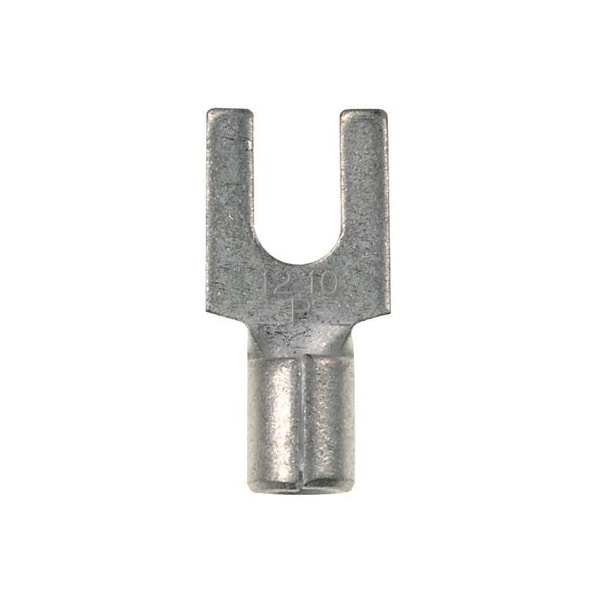

Terminal de horquilla, lengüeta angosta, no aislada.
| Wire Range | 22 to 16 AWG |
|---|---|
| Insulation Type | Non-Insulated |
| Stud Size | #10 |
| Insulation Color | Metallic |
| Max. Voltage | 2,000 V |
| Max. Temp. | 302 deg F |
| Item | Fork Terminal |
| Barrel Inside Dia. | 0.07 in |
| Standards | UL Listed 587H E52164; CSA Certified LR31212 |
| Overall Length | 0.71 in |
| Connection Material | Copper |
| Seam | Standard, Brazed |
| Features | Brazed Seam |
| Tongue Width - Wire Connector | 0.31 in |
| Terminal Type | Fork Terminals |
| Finish | Tin-Plated |
| Width | 0.3 in |
| Length | 0.7 in |
| Connector Plating | Tin |
| Product Material | Copper |
| Product Name | Terminal Connector |
| Connector Details | 1 x (Fork Terminal) |
| Product Type | Terminal Connector |
| Outside Diameter Inches | 0.14 in |
| Max Operating Temperature | 150 degrees celsius |
| Color Coding | Metallic |
| Barrel Type | Brazed |
| Product Class | Wire Termination |
| Package Quantity | 100 |
