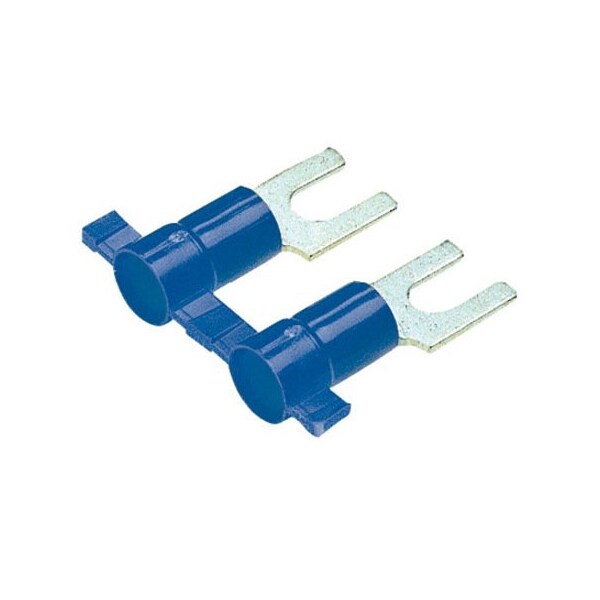

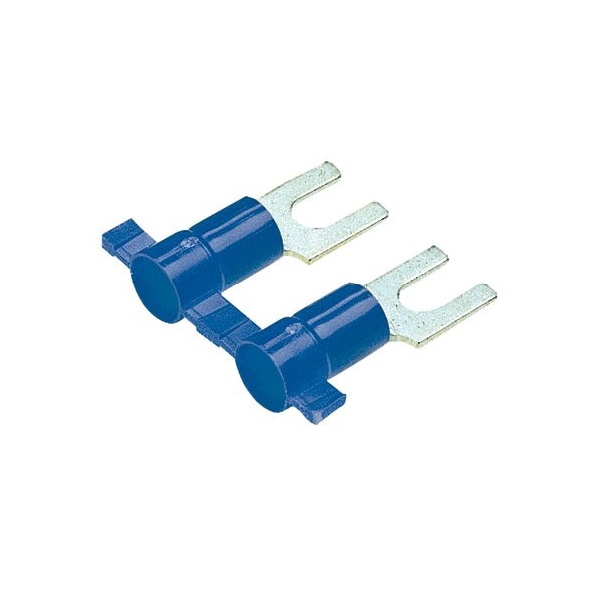

Terminal de horquilla, lengüeta estrecha, con aislante de vinilo.
| Wire Range | 16 to 14 AWG |
|---|---|
| Insulation Type | Vinyl |
| Stud Size | #6 |
| Insulation Color | Blue |
| Standards | UL Listed 587H E52164; CSA Certified LR31212 |
| Item | Fork Terminal |
| Max. Temp. | 221 deg F |
| Seam | Butted |
| Max. Voltage | 600 V |
| Overall Length | 0.78 in |
| Tongue Width - Wire Connector | 0.24 in |
| Terminal Type | Fork Terminals |
| Connection Material | Copper |
| Features | Funnel Entry |
| Length | 0.8 in |
| Width | 0.2 in |
| Finish | Tin-Plated |
| Insulation Dia | 0.17 in |
| Product Material | Copper, Vinyl |
| Connector Plating | Tin |
| Product Color | Blue |
| Product Name | Terminal Connector |
| Product Type | Terminal Connector |
| Connector Details | 2 x (Fork Terminal) |
| Diameter | 0.2" |
| Insulation Material | Vinyl |
| Max Operating Temperature | 105 degrees celsius |
| Color Coding | Blue |
| Product Class | Wire Termination |
| Barrel Type | Funnel |
| Package Quantity | 3000 |
