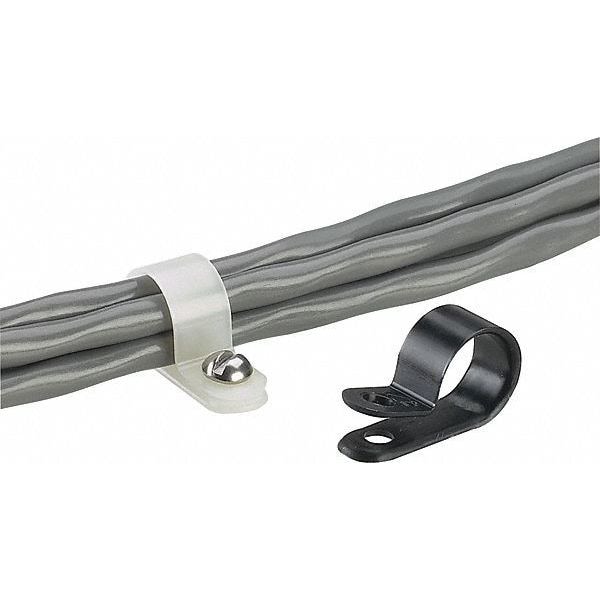

Fxd dia. Clmp, .25" Bdl, #10 Screw, PK100
| Item | Fxd dia. Clmp,.25" Bdl,#10 Screw,PK100 |
|---|---|
| Color | Natural |
| Width | 1/2 in |
| Material | Nylon 6.6 |
| Height | 1/4 in |
| Product Type | Cable Clamp |
| Maximum Flange Thickness (mm) | 1.3 |
| Overall Width (In.) | 1/2 |
| Environment | Indoor |
| Mounting Hole Diameter (In.) | 0.203 |
| Maximum Operating Temperature (°F) | 185 |
| Overall Length (mm) | 16.15 |
| Application | For securing wires and cables via fixed diameter clamping |
| Overall Length (In.) | 0.635 |
| Minimum Operating Temperature (°F) | -76 |
| Finish/Coating | None |
| Mounting Hole Diameter (mm) | 5.1 |
| Overall Height (In.) | 0.35 |
| Maximum Bundle Diameter (In.) | 0.25 |
| Maximum Bundle Diameter (mm) | 6.4 |
| Maximum Flange Thickness (In.) | 0.05 |
| Overall Width (mm) | 12.7 |
| Mount Method | Screw |
| Overall Height (mm) | 8.9 |
| Note | Not available in Japan |
| Maximum Operating Temperature (°C) | 85 |
| Minimum Operating Temperature (°C) | -60 |
| Cable Manager Type | Cable Clamp |
| Additional Information | Environment: Indoors, Metric Screw Size: M5, Bundle Offset: 0.46 Inch, Diameter: 0.20 Inch, Type Of Application: Heavy Duty |
| Product Name | Heavy Duty Fixed Diameter Cable Clamp |
| Product Color | Natural |
| Product Material | Nylon 6.6 |
| Min Operating Temperature | -60 degrees celsius |
| Max Operating Temperature | 85 degrees celsius |
| Product Class | Wire Routing, Management & Protection |
| Overall Length | 0.46 in |
| Package Quantity | 100 |
