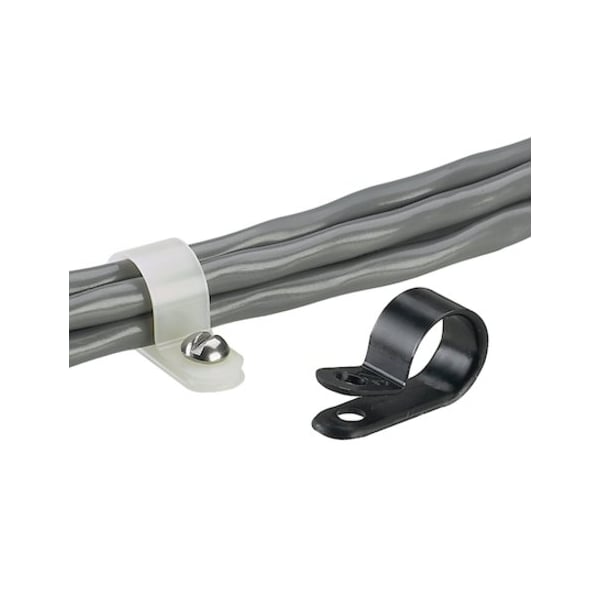

Fxd dia. Clmp, .38" Bdl, #8screw, Bl, PK1000
| Item | Fxd dia. Clmp,.38" Bdl,#8screw,Bl,PK1000 |
|---|---|
| Color | Black |
| Length | 0.59 in |
| Width | 0.37 in |
| Material | Weather Resistant Nylon 6.6 |
| Height | 0.38 in |
| Application | For securing wires and cables via fixed diameter clamping |
| Overall Length | 0.59 in |
| Maximum Flange Thickness (In.) | 0.05 |
| Mount Method | Screw |
| Overall Width (In.) | 0.37 |
| Product Type | Cable Clamp |
| Overall Height (mm) | 12.1 |
| Mounting Hole Diameter (In.) | 0.167 |
| Resistance Properties | Weather Resistant |
| Overall Length (In.) | 0.83 |
| Maximum Operating Temperature (°F) | 185 |
| Environment | Indoor, Outdoor |
| Note | Not available in Japan |
| Maximum Bundle Diameter (mm) | 9.6 |
| Maximum Flange Thickness (mm) | 1.3 |
| Maximum Bundle Diameter (In.) | 0.38 |
| Mounting Hole Diameter (mm) | 4.2 |
| Finish/Coating | None |
| Overall Height (In.) | 0.48 |
| Overall Length (mm) | 21.05 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Overall Width (mm) | 9.4 |
| Maximum Operating Temperature (°C) | 85 |
| Product Color | Black |
| Cable Manager Type | Cable Clamp |
| Product Name | Cable Clamp |
| Product Material | Nylon 6.6 |
| Product Class | Wire Routing, Management & Protection |
| Min Operating Temperature | -60 degrees celsius |
| Package Quantity | 1000 |
