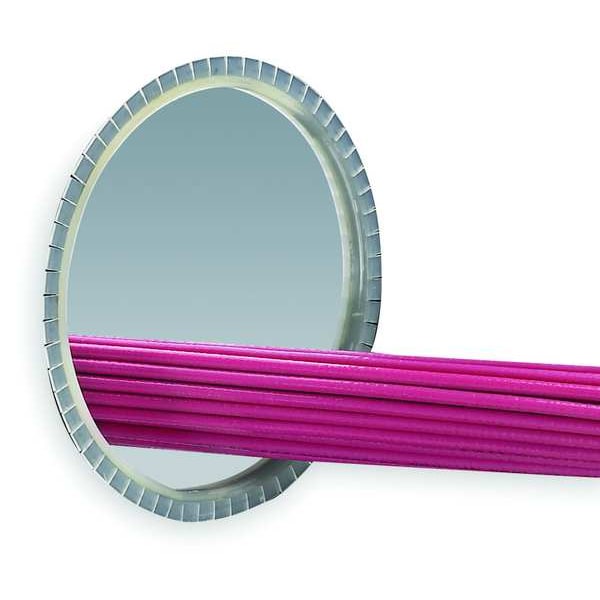

Grommet Edging, Slotted, 100 ft., 0.062 In.
| Grommet Style | Slotted |
|---|---|
| Max. Panel Thickness | 0.06 in |
| Width | 0.13 in |
| Min. Panel Thickness | 0.04 in |
| Color | Natural |
| Length | 100 ft |
| Item | Grommet Edging |
| Material | Polyethylene |
| Min. Temp. Rating | -40 Degrees F |
| Adhesive Lined | Yes |
| Max. Temp. Rating | 122 deg F |
| Depth | 0.16 in |
| Standards | RoHS Compliant |
| Length (Straight Wireway) | 100 ft |
| Application | To Protect and Prevent Wires and Cables from Chafing Against Sharp Edges of Panel Walls and Knockouts. |
| Temp. Range | -40 to 122°F |
| Description/Special Features | Flammability Rating of UL94-HB; Designed for irregular shaped or round panel holes; Abrasion Protection |
| Cable Manager Type | Slotted Wall |
| Product Color | Natural |
| Product Type | Cable Protection |
| Additional Information | Panel Thickness Range: 0.036 Inch to 0.062 Inch |
| Height | 0.16 in |
| Product Name | Adhesive Lined Grommet Edging |
| Product Material | Polyethylene |
| Resistance Properties | Abrasion Protection |
| Overall Length (ft.) | 100 |
| Overall Width (mm) | 3.3 |
| Maximum Operating Temperature (°C) | 50 |
| Overall Width (In.) | 0.13 |
| Overall Height (mm) | 4.1 |
| Maximum Compatible Panel Thickness (In.) | 0.062 |
| Overall Length (m) | 30.5 |
| Note | Designed for irregular shaped or round panel holes |
| Minimum Operating Temperature (°F) | -40 |
| Standards Met | RoHS Compliant |
| Overall Height (In.) | 0.16 |
| Maximum Compatible Panel Thickness (mm) | 1.6 |
| Maximum Operating Temperature (°F) | 122 |
| Minimum Operating Temperature (°C) | -40 |
| Minimum Compatible Panel Thickness (mm) | 0.9 |
| Flammability Rating | UL94-HB |
| Minimum Compatible Panel Thickness (In.) | 0.036 |
| Maximum Operating Temperature (°C) | 50 |
| Minimum Operating Temperature (°C) | -40 |
| Maximum Operating Temperature (°F) | 122 |
| Minimum Operating Temperature (°F) | -40 |
| Package Quantity | 1 |
