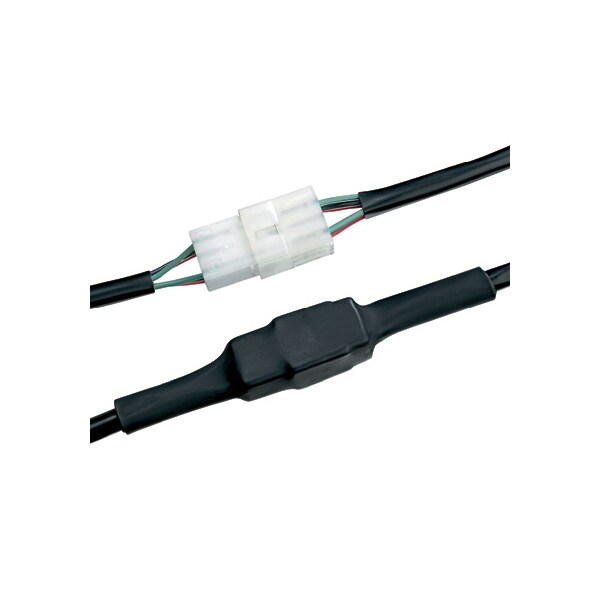

Heat Shrink 4:1, .630" (16.0mm) Min Expanded, HSTT4A62-48-5, PK 5
| Shrink Ratio | 0.1674 |
|---|---|
| Material | Adhesive Lined Cross-Linked Polyolefin |
| Color | Black |
| Length | 48 in |
| Application | Insulate and Protect oversized electrical components, cables, terminals, and connectors |
| Overall Length | 3 m |
| Maximum Recovered Inside Diameter (In.) | 0.158 |
| Shrink Temperature (°F) | 248 |
| Maximum Operating Temperature (°C) | 125 |
| Minimum Expanded Inside Diameter (In.) | 0.63 |
| Maximum Recovered Inside Diameter (mm) | 4 |
| Nominal Recovered Wall Thickness (mm) | 1.8 |
| Adhesive Lined | Yes |
| Minimum Operating Temperature (°C) | -55 |
| Nominal Diameter (In.) | 0.63 |
| Overall Length (mm) | 1,219 |
| Overall Length (m) | 1.2 |
| Overall Length (ft.) | 4 |
| Minimum Expanded Inside Diameter (mm) | 16 |
| Nominal Recovered Wall Thickness (In.) | 0.07 |
| Overall Length (In.) | 48 |
| Maximum Operating Temperature (°F) | 257 |
| Minimum Operating Temperature (°F) | -67 |
| Shrink Temperature (°C) | 120 |
| Product Type | Heat Shrink |
| Nominal Diameter (mm) | 16 |
| Cable Manager Type | Heat Shrink Tube |
| Product Color | Black |
| Product Material | Polyolefin |
| Product Name | Cable Protector Heat Shrink Tube |
| Product Class | Wire Routing, Management & Protection |
| Package Quantity | 5 |
