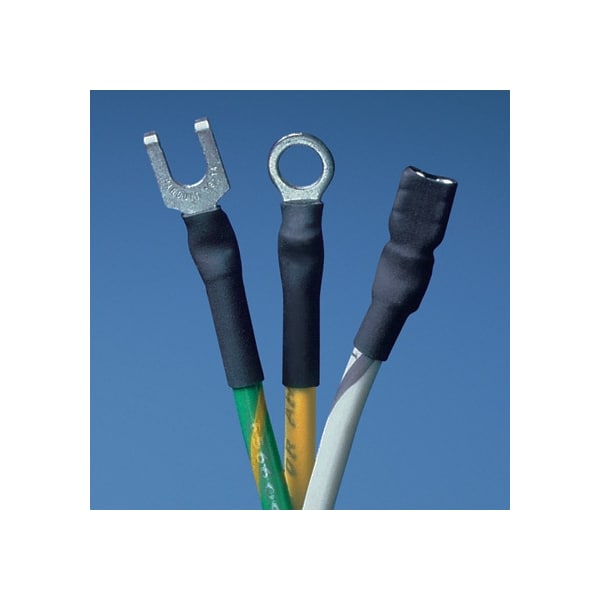

HEAT SHRINK, BLACK (3/4"), 4 FT PC, ROHS
| Shrink Ratio | 0.084 |
|---|---|
| Material | Cross-Linked Polyolefin |
| Color | Black |
| Length | 48 in |
| Application | For Dry Locations; Insulating and protecting wires and cables |
| Maximum Operating Temperature (°C) | 135 |
| Minimum Operating Temperature (°F) | -67 |
| Minimum Expanded Inside Diameter (mm) | 19.1 |
| Overall Length (In.) | 48 |
| Maximum Recovered Inside Diameter (mm) | 9.5 |
| Nominal Recovered Wall Thickness (mm) | 0.8 |
| Maximum Recovered Inside Diameter (In.) | 0.375 |
| Nominal Diameter (mm) | 19.1 |
| Maximum Operating Temperature (°F) | 275 |
| Minimum Operating Temperature (°C) | -55 |
| Resistance Properties | Flame Retardant |
| Nominal Recovered Wall Thickness (In.) | 0.03 |
| Overall Length (m) | 1.2 |
| Overall Length (ft.) | 4 |
| Overall Length (mm) | 1,219.2 |
| Shrink Temperature (°C) | 90 |
| Shrink Temperature (°F) | 194 |
| Nominal Diameter (In.) | 0.75 |
| Minimum Expanded Inside Diameter (In.) | 0.75 |
| Product Type | Cable Protection |
| Product Material | Polyolefin |
| Product Color | Black |
| Cable Manager Type | Heat Shrink Tube |
| Product Name | Cable Protector Heat Shrink Tube |
| Material/Type | Po-Polyolefin |
| Heat Shrink | Yes Is Shrink Tubing |
| Wall Type Single Or Dual | Single Wall |
| Military Spec | MIL-I-23053/5 |
| UL | Yes |
| Size (In.) | 3/4 |
| Package Quantity | 1 |
