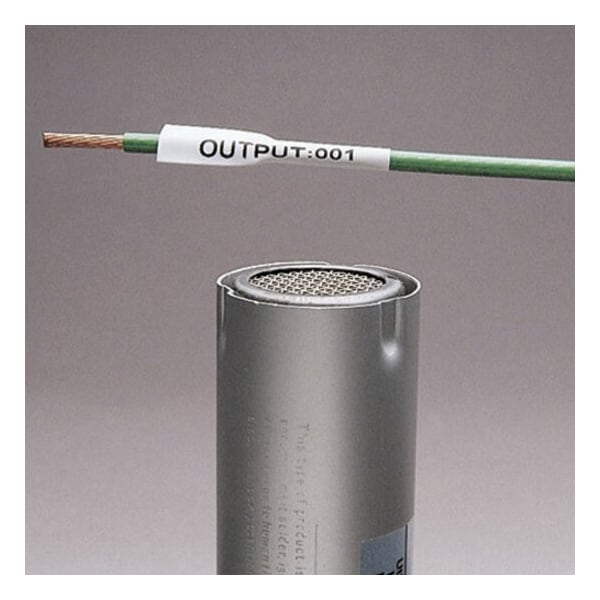

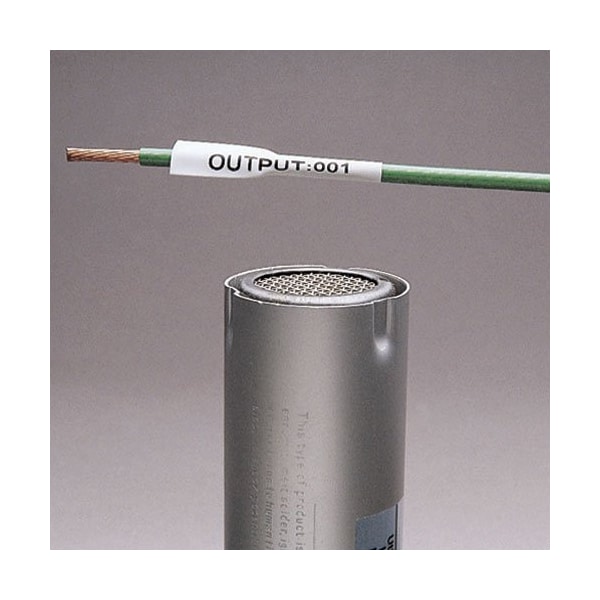

Heat Shrink Label, 3:1 I.D. Shrink Ratio, Yellow, 1/4 in
| Item | Heat Shrink Label |
|---|---|
| Shrink Ratio | 3:1 |
| Material | Polyolefin |
| Color | Yellow |
| Length | 1/4 in |
| Use with Wire Size | 18 AWG |
| Temp. Range | -67° to 275°F |
| Min. Shrink Temp. | 194°F |
| Shrink Tubing I.D. Before Shrinking | 0.13 in |
| Width | 1-1/2 in |
| Height | 1/4 in |
| Flammability Rating | VW-1 |
| Number of Sides | 1 |
| Overall Height (mm) | 6.4 |
| Resistance Properties | Military Grade |
| Label Property | Flammability, Fluid Resistance, Harsh Environments, Military Grade |
| Overall Width (In.) | 1-1/2 |
| Label Application | Cable & Wire Marking |
| Number of Labels per Row | 1 |
| Number of Labels | 500 |
| Overall Width (mm) | 38.1 |
| Minimum Cable Diameter (In.) | 0.04 |
| Overall Height (In.) | 1/4 |
| Label Diameter | 1/8 in |
| Label Height | 1/4 in |
| Number of Labels per Roll | 500 |
| Label Width | 1-1/2 in |
| Print Technology | Thermal Transfer |
| Product Class | Signs, Labels & Identification |
| Package Quantity | 1 |
