Heat Shrink Thick Adh, 1.1"dia., Bl, PK5
| Item | Heat Shrink Thick Adh,1.1"dia.,Bl,PK5 |
|---|---|
| Shrink Ratio | 0.1257 |
| Material | Adhesive Lined Cross-Linked Polyolefin |
| Color | Black |
| Length | 12 in |

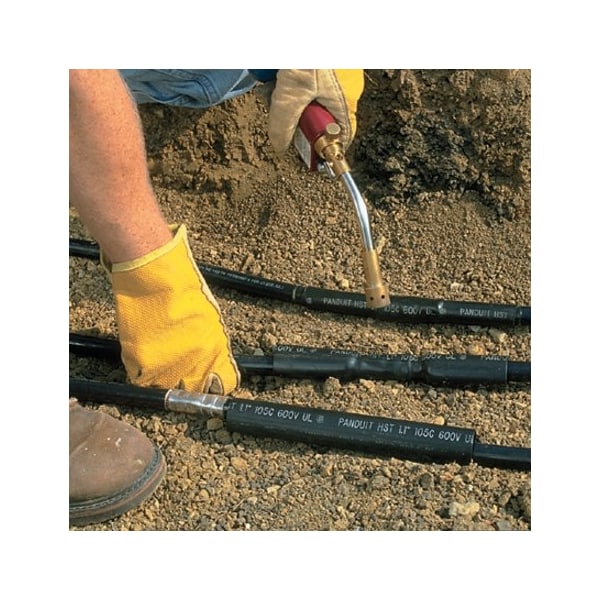

| Application | For Wet Locations; Insulating and protecting wires and cables; Suitable for direct burial |
| Maximum Recovered Inside Diameter (mm) | 9.5 |
| Overall Length (In.) | 12 |
| Maximum Recovered Inside Diameter (In.) | 0.39 |
| Maximum Operating Temperature (°F) | 230 |
| Overall Length (mm) | 304.8 |
| Nominal Recovered Wall Thickness (In.) | 0.12 |
| Shrink Temperature (°F) | 248 |
| Adhesive Lined | Yes |
| Overall Length (ft.) | 0.98 |
| Nominal Recovered Wall Thickness (mm) | 3 |
| Shrink Temperature (°C) | 120 |
| Maximum Operating Temperature (°C) | 110 |
| Product Type | Heat Shrink |
| Minimum Operating Temperature (°F) | -67 |
| Minimum Expanded Inside Diameter (In.) | 1.1 |
| Minimum Expanded Inside Diameter (mm) | 27.9 |
| Overall Length (m) | 0.3 |
| Minimum Operating Temperature (°C) | -55 |
| Product Name | Cable Protector Heat Shrink Tube |
| Product Color | Black |
| Product Material | Polyolefin |
| Cable Manager Type | Heat Shrink Tube |
| Max Operating Temperature | 110 degrees celsius |
| Min Operating Temperature | -55 degrees celsius |
| Product Class | Wire Routing, Management & Protection |
| Package Quantity | 5 |
