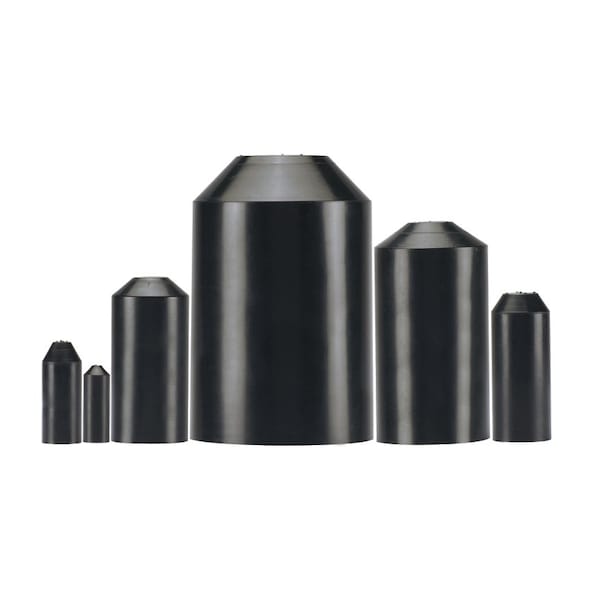

Heat Shrink Thick Adhesive End Cap, 4.1"
| Shrink Ratio | 2.5:1 |
|---|---|
| Material | Cross-Linked Polyolefin |
| Color | Black |
| Application | Wet Applications. Applications Include Insulating and Protecting Wires and Cables |
| Overall Length | 6.3 in |
| Minimum Operating Temperature (°C) | -40 |
| Product Type | Cap |
| Nominal Recovered Wall Thickness (In.) | 0.15 |
| Maximum Recovered Inside Diameter (mm) | 45.2 |
| Maximum Operating Temperature (°F) | 257 |
| Maximum Operating Temperature (°C) | 125 |
| Minimum Operating Temperature (°F) | -40 |
| Overall Length (In.) | 5.37 |
| Overall Length (mm) | 136.4 |
| Minimum Expanded Inside Diameter (mm) | 99.6 |
| Nominal Recovered Wall Thickness (mm) | 3.8 |
| Maximum Recovered Inside Diameter (In.) | 1.78 |
| Minimum Expanded Inside Diameter (In.) | 3.92 |
| Product Material | Polyolefin |
| Product Name | Cable Protector End Cap |
| Product Color | Black |
| Cable Manager Type | End Cap |
| Product Class | Wire Routing, Management & Protection |
| Min Operating Temperature | -40 degrees celsius |
| Max Operating Temperature | 125 degrees celsius |
| Package Quantity | 2 |
