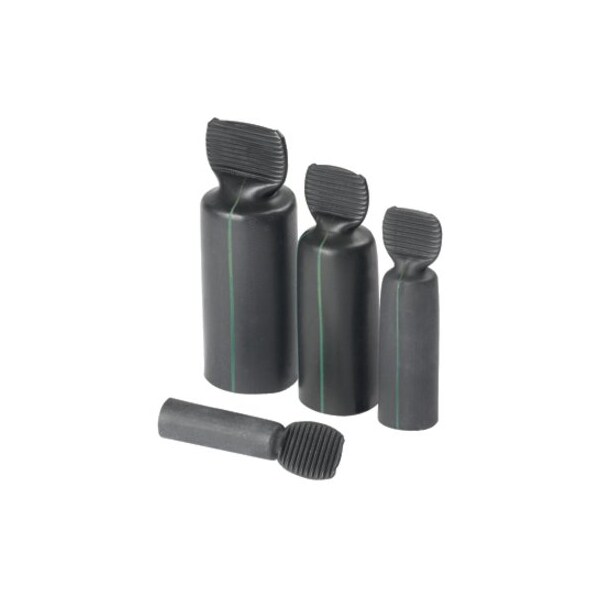

Heat Shrink Thick Adhesive End Cap, .5"(
| Shrink Ratio | 0.1257 |
|---|---|
| Material | Cross-Linked Polyolefin |
| Color | Black |
| Overall Length | 3.12 in |
| Application | Wet Applications. Applications Include Insulating and Protecting Wires and Cables |
| Product Type | Cap |
| Maximum Operating Temperature (°C) | 110 |
| Flammability Rating | V-0 |
| Resistance Properties | Flame Retardant |
| Maximum Recovered Inside Diameter (In.) | 0.16 |
| Maximum Recovered Inside Diameter (mm) | 4.1 |
| Nominal Recovered Wall Thickness (mm) | 2.3 |
| Minimum Expanded Inside Diameter (mm) | 13 |
| Minimum Operating Temperature (°F) | -67 |
| Minimum Operating Temperature (°C) | -55 |
| Overall Length (In.) | 2-1/2 |
| Maximum Operating Temperature (°F) | 230 |
| Minimum Expanded Inside Diameter (In.) | 0.51 |
| Nominal Recovered Wall Thickness (In.) | 0.09 |
| Overall Length (mm) | 63.5 |
| Product Name | Cable Protector End Cap |
| Product Material | Polyolefin |
| Cable Manager Type | End Cap |
| Product Color | Black |
| Min Operating Temperature | -55 degrees celsius |
| Product Class | Wire Routing, Management & Protection |
| Max Operating Temperature | 110 degrees celsius |
| Package Quantity | 10 |
