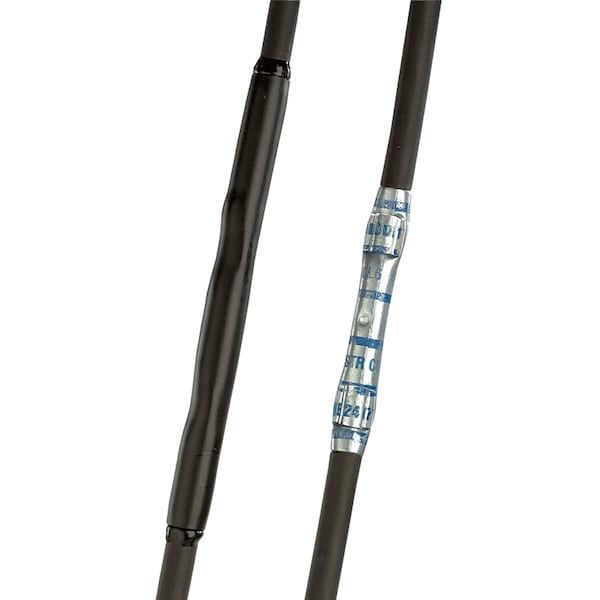

Heat Shrink Thin, Adhsv, .25"(6.4mm) Dia, Blk, HSTTA25-48-TL, PK 250
| Shrink Ratio | 0.1257 |
|---|---|
| Material | Adhesive Lined Cross-Linked Polyolefin |
| Color | Black |
| Length | 48 in |
| Application | For Damp Locations; Insulating and protecting wires and cables |
| Resistance Properties | Outer wall is flame retardant; Suitable for damp locations |
| Minimum Expanded Inside Diameter (In.) | 0.25 |
| Adhesive Lined | Yes |
| Overall Length (ft.) | 4 |
| Nominal Recovered Wall Thickness (In.) | 0.04 |
| Maximum Operating Temperature (°C) | 110 |
| Shrink Temperature (°F) | 248 |
| Nominal Diameter (mm) | 6.4 |
| Minimum Operating Temperature (°C) | -55 |
| Overall Length (m) | 1.2 |
| Nominal Recovered Wall Thickness (mm) | 1 |
| Maximum Operating Temperature (°F) | 230 |
| Minimum Operating Temperature (°F) | -67 |
| Minimum Expanded Inside Diameter (mm) | 6.4 |
| Overall Length (mm) | 1,219.2 |
| Maximum Recovered Inside Diameter (In.) | 0.08 |
| Overall Length (In.) | 48 |
| Product Type | Heat Shrink |
| Nominal Diameter (In.) | 0.25 |
| Maximum Recovered Inside Diameter (mm) | 2 |
| Shrink Temperature (°C) | 120 |
| Product Color | Black |
| Cable Manager Type | Heat Shrink Tube |
| Product Name | Cable Protector Heat Shrink Tube |
| Product Material | Polyolefin |
| Product Class | Wire Routing, Management & Protection |
| Package Quantity | 250 |
