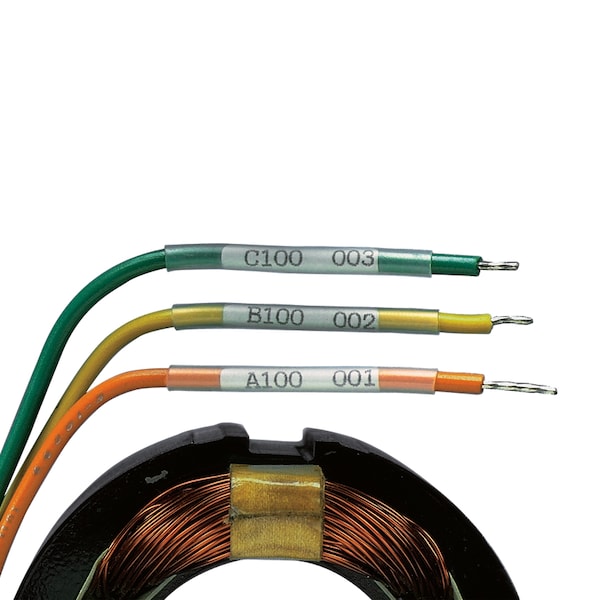

Heat Shrink Thin Kynar*, .75"(19.0mm) Dia, HSTTK75-48-5, PK 5
| Shrink Ratio | 0.084 |
|---|---|
| Material | Kynar - Cross-Linked Polyvinylidene Fluoride (PVDF) |
| Color | Clear |
| Length | 48 in |
| Application | For Dry Locations |
| Maximum Recovered Inside Diameter (In.) | 0.375 |
| Nominal Recovered Wall Thickness (mm) | 0.4 |
| Nominal Recovered Wall Thickness (In.) | 0.017 |
| Maximum Operating Temperature (°F) | 347 |
| Shrink Temperature (°C) | 135 |
| Overall Length (m) | 1.2 |
| Maximum Operating Temperature (°C) | 175 |
| Maximum Recovered Inside Diameter (mm) | 9.5 |
| Minimum Expanded Inside Diameter (In.) | 0.75 |
| Overall Length (mm) | 1,219 |
| Nominal Diameter (mm) | 19.1 |
| Minimum Operating Temperature (°F) | -67 |
| Minimum Expanded Inside Diameter (mm) | 19.1 |
| Overall Length (ft.) | 4 |
| Nominal Diameter (In.) | 0.75 |
| Product Type | Heat Shrink |
| Minimum Operating Temperature (°C) | -55 |
| Shrink Temperature (°F) | 275 |
| Overall Length (In.) | 48 |
| Product Color | Clear |
| Cable Manager Type | Heat Shrink Tube |
| Product Name | Cable Protector Heat Shrink Tube |
| Product Material | Polyvinylidene Fluoride |
| Product Class | Wire Routing, Management & Protection |
| Package Quantity | 5 |
