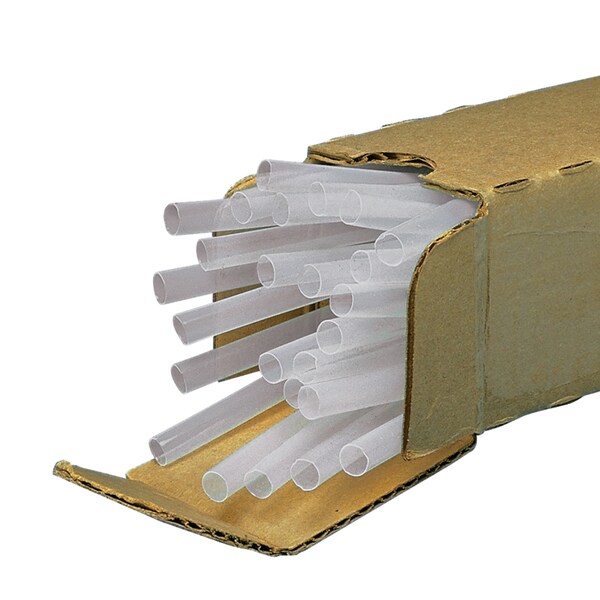

Heat Shrink Thin, TFE, 1.12"(28.6mm) Dia, HSTTT112-48-5, PK 5
| Shrink Ratio | 0.084 |
|---|---|
| Material | Polytetrafluoroethylene (TFE) |
| Color | Milky Clear |
| Length | 48 in |
| Application | For Dry Locations |
| Shrink Temperature (°C) | 340 |
| Overall Length (ft.) | 4 |
| Maximum Operating Temperature (°C) | 250 |
| Nominal Diameter (mm) | 28.6 |
| Nominal Recovered Wall Thickness (In.) | 0.025 |
| Maximum Recovered Inside Diameter (mm) | 20 |
| Minimum Expanded Inside Diameter (mm) | 28.6 |
| Minimum Expanded Inside Diameter (In.) | 1.12 |
| Product Type | Heat Shrink |
| Nominal Diameter (In.) | 1.125 |
| Minimum Operating Temperature (°C) | -67 |
| Overall Length (m) | 1.2 |
| Maximum Operating Temperature (°F) | 482 |
| Nominal Recovered Wall Thickness (mm) | 0.6 |
| Shrink Temperature (°F) | 644 |
| Overall Length (In.) | 48 |
| Maximum Recovered Inside Diameter (In.) | 0.786 |
| Minimum Operating Temperature (°F) | -88 |
| Product Name | Cable Protector Heat Shrink Tube |
| Product Color | Clear |
| Product Material | Polytetrafluoroethylene |
| Cable Manager Type | Heat Shrink Tube |
| Product Class | Wire Routing, Management & Protection |
| Package Quantity | 5 |
