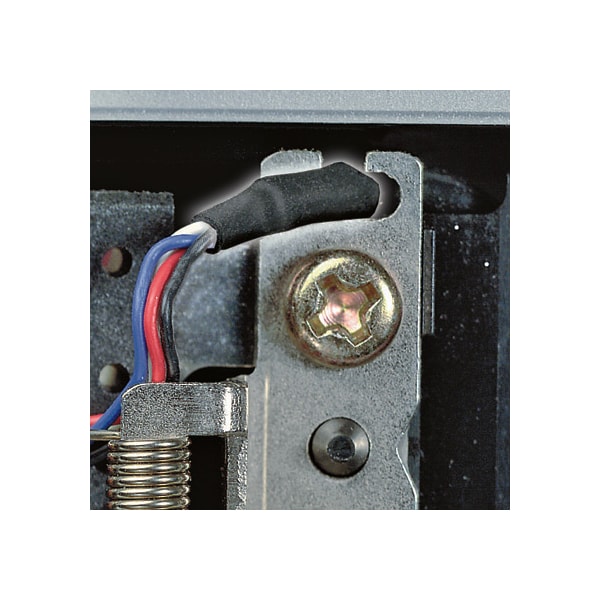

Heat Shrink Thin VW-1, .38"(9.5mm) Dia, Black, HSTTV38-48-Q, PK 25
| Shrink Ratio | 0.084 |
|---|---|
| Material | Flame retardant polyolefin cross-linked except clear |
| Color | Black |
| Length | 48 in |
| Application | For Dry Locations |
| Maximum Recovered Inside Diameter (mm) | 4.8 |
| Minimum Expanded Inside Diameter (In.) | 0.375 |
| Maximum Operating Temperature (°F) | 275 |
| Overall Length (In.) | 48 |
| Overall Length (mm) | 1,219 |
| Minimum Expanded Inside Diameter (mm) | 9.5 |
| Maximum Recovered Inside Diameter (In.) | 0.187 |
| Nominal Recovered Wall Thickness (mm) | 0.6 |
| Overall Length (m) | 1.2 |
| Shrink Temperature (°F) | 194 |
| Nominal Diameter (mm) | 9.5 |
| Overall Length (ft.) | 4 |
| Nominal Diameter (In.) | 0.375 |
| Maximum Operating Temperature (°C) | 135 |
| Minimum Operating Temperature (°F) | -67 |
| Nominal Recovered Wall Thickness (In.) | 0.025 |
| Shrink Temperature (°C) | 90 |
| Product Type | Heat Shrink |
| Minimum Operating Temperature (°C) | -55 |
| Product Material | Polyolefin |
| Product Color | Black |
| Product Name | Cable Protector Heat Shrink Tube |
| Cable Manager Type | Heat Shrink Tube |
| Product Class | Wire Routing, Management & Protection |
| Package Quantity | 25 |
