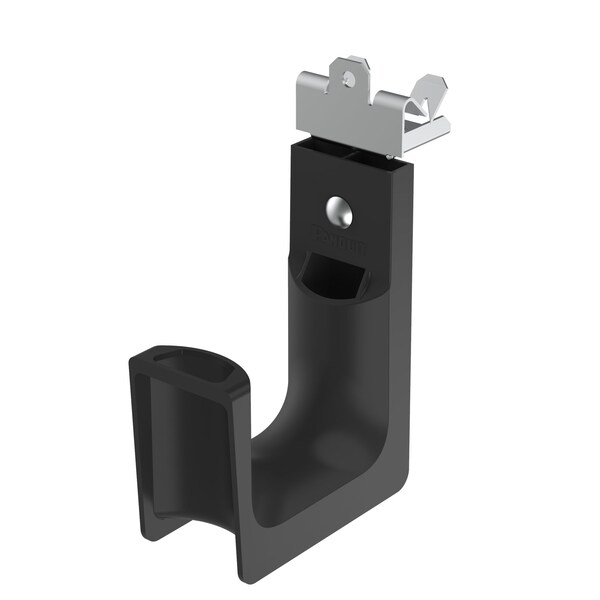

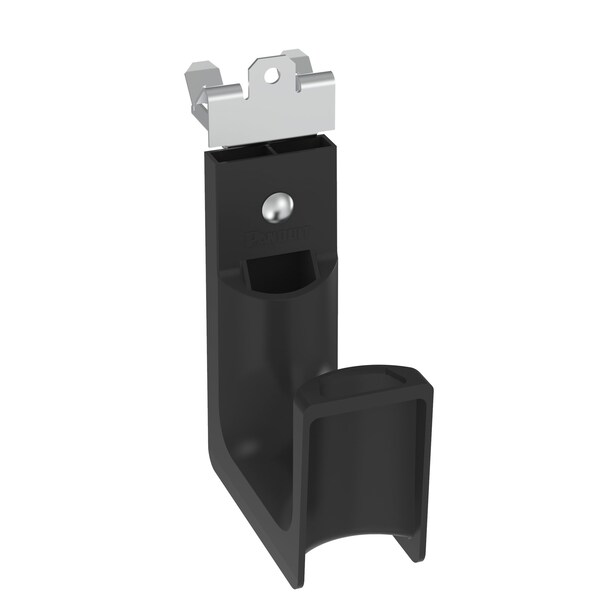

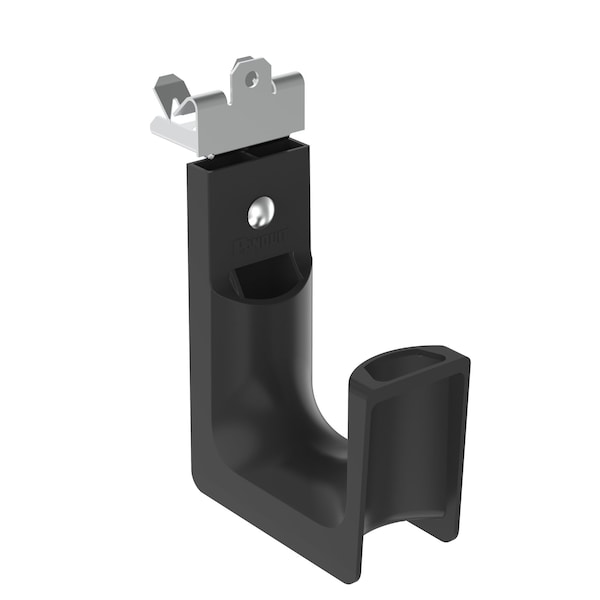

J-Pro Cable Support System Hammer-On Bea
| Color | Black |
|---|---|
| Material | Nylon 6.6/Metal |
| Includes | Hammer-on Beam Clamp |
| Height | 9.4 in |
| Width | 8-1/2 in |
| For Use With | Flanges |
| Overall Length | 8-1/2 in |
| Application | Route High Performance Communication Cabling in Air Handling Spaces |
| Overall Width (mm) | 138 |
| Support Type | J-PRO J-Hook System |
| Maximum Flange Thickness (mm) | 12.7 |
| Mount Method | Hammer-on Beam Clamp |
| Category 5e Cable Capacity | 200 |
| Overall Length (In.) | 8-1/2 |
| Overall Width (In.) | 8-1/2 |
| Maximum J-Hook Bundle Capacity | 101.6 |
| Overall Length (mm) | 138 |
| Product Type | J-Pro Cable Support |
| Static Load Capacity (kg) | 22.7 |
| Overall Height (mm) | 238.7 |
| Overall Height (In.) | 9.4 |
| Maximum Flange Thickness (In.) | 0.5 |
| Category 6A Cable Capacity | 115 |
| Static Load Capacity (lb) | 50 |
| Category 6 Cable Capacity | 180 |
| Cable Manager Type | J-hook |
| Product Material | Nylon 6.6, Metal |
| Product Name | Cable Guide J-hook |
| Product Color | Black |
| Product Class | Wire Routing, Management & Protection |
| Package Quantity | 10 |
