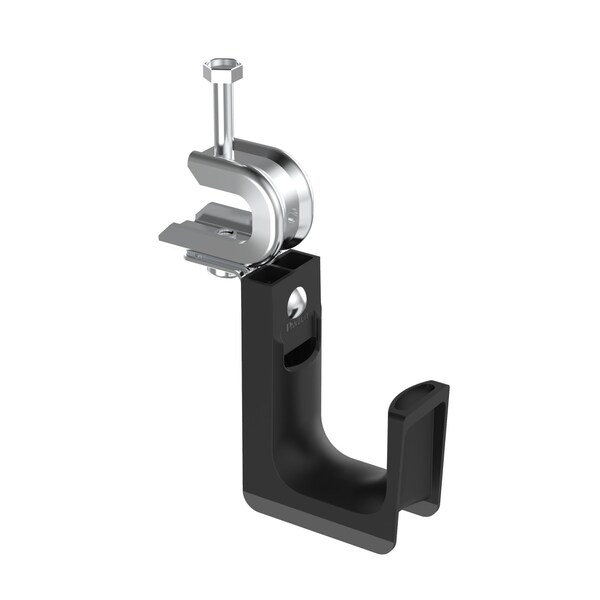

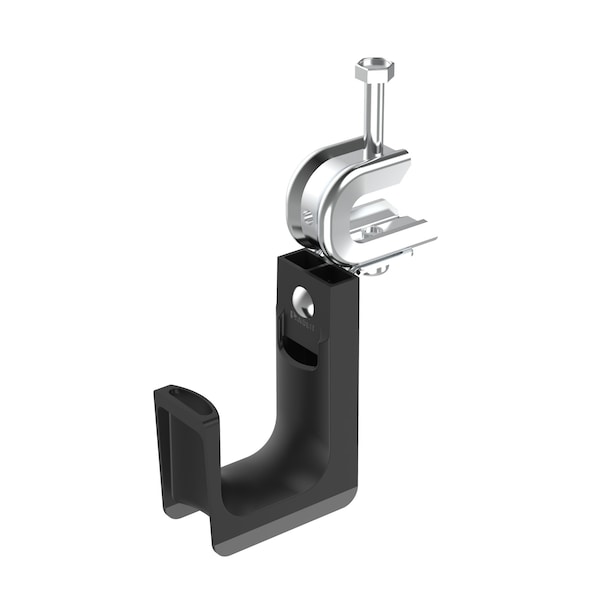

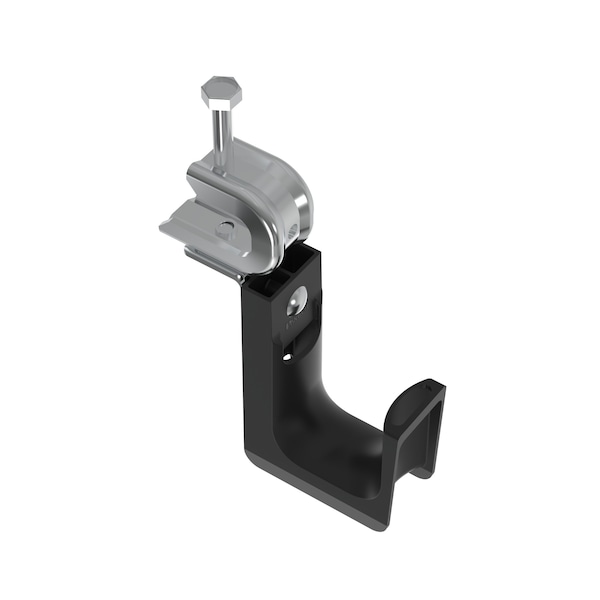

J-Pro Cable Support System Screw-On Beam
| Color | Black |
|---|---|
| Material | Nylon 6.6/Metal |
| Width | 3.83 in |
| Includes | Screw-On Beam Clamp |
| Height | 4.32 in |
| Overall Length | 3.83 in |
| Application | Route High Performance Communication Cabling in Air Handling Spaces |
| For Use With | Flanges |
| Overall Width (In.) | 3.83 |
| Overall Length (mm) | 97.3 |
| Overall Length (In.) | 3.83 |
| Maximum Flange Thickness (mm) | 12.7 |
| Support Type | J-PRO J-Hook System |
| Category 6A Cable Capacity | 15 |
| Overall Width (mm) | 97.3 |
| Static Load Capacity (lb) | 20 |
| Maximum Flange Thickness (In.) | 0.5 |
| Product Type | Cable Tying |
| Mount Method | Screw-On Beam Clamp |
| Category 5e Cable Capacity | 29 |
| Overall Height (In.) | 4.32 |
| Maximum J-Hook Bundle Capacity | 33.34 |
| Static Load Capacity (kg) | 9.1 |
| Category 6 Cable Capacity | 25 |
| Overall Height (mm) | 109.9 |
| Cable Manager Type | J-hook |
| Product Material | Nylon, Metal 6.6 |
| Product Name | Cable Guide J-hook |
| Product Color | Black |
| Product Class | Wire Routing, Management & Protection |
| Package Quantity | 50 |
