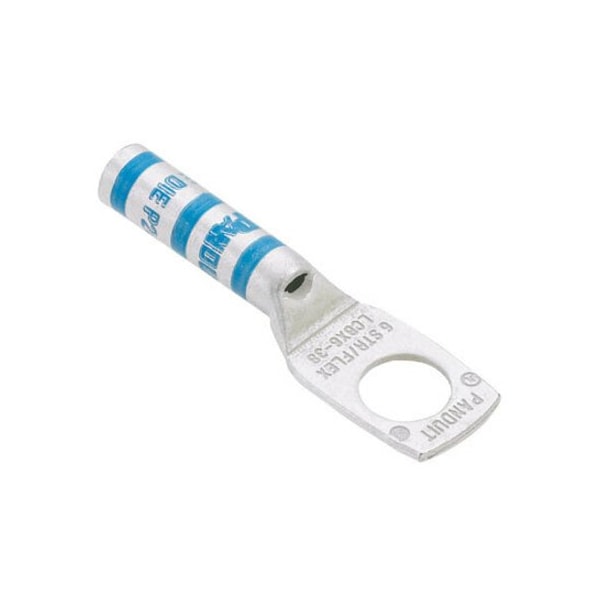

Lug Lgflex, 1/0 Awg, .38" Stud, Wdw.
| Cable Size | 1/0 AWG |
|---|---|
| Connector Type | Long Barrel |
| Width | 0.85 in |
| Material | Tin-Plated Copper |
| Length | 2.67 in |
| Color Code | Pink |
| Item | Lug Compression Connector |
| Connection Material | Tin |
| Overall Length | 2.67 in |
| Connection Type | 1 x Terminal |
| Features | Angled Connector, Corrosion Resistant |
| Panduit Die Index Number | P42 |
| Class H Copper Flex Conductor Size (AWG) | 36,526 |
| Barrel Length (In.) | 1-1/2 |
| Overall Length (In.) | 2.67 |
| Tongue Width (mm) | 21.6 |
| Burndy Die Index Number | 12 |
| Tongue Thickness (mm) | 3.3 |
| DLO Copper Flex Conductor Size (AWG) | 36,526 |
| Tongue Angle | Straight |
| Class K Copper Flex Conductor Size (AWG) | 36,526 |
| Barrel Type | Long Barrel Length with Inspection Window |
| Class G Copper Flex Conductor Size (AWG) | 36,526 |
| Stud Hole Size (mm) | 9.5 |
| Tongue Thickness (In.) | 0.13 |
| Base Material | Copper |
| Class I Copper Flex Conductor Size (AWG) | 36,526 |
| Tongue Type | Standard |
| Stud Hole Size (In.) | 44,993 |
| Barrel Length (mm) | 38.1 |
| Finish/Coating | Tin-Plated |
| Copper Code Conductor Size (AWG) | 36,526 |
| Maximum Voltage (kV) | 35 |
| Wire Strip Length (mm) | 40 |
| Overall Length (mm) | 67.8 |
| Product Type | Copper Compression Connectors - Lugs |
| UL Temperature Rating (°C) | 90 |
| Tongue Width (In.) | 0.85 |
| Class M Copper Flex Conductor Size (AWG) | 36,526 |
| Connector Plating | Tin |
| Product Material | Copper |
| Connector Details | 1 x Terminal |
| Product Name | Terminal Connector |
| Product Class | Wire Termination |
| Package Quantity | 1 |
