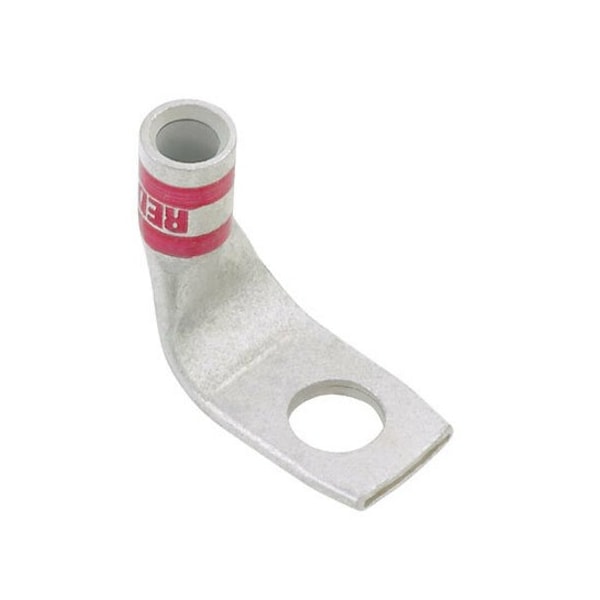

Conector de compresión para cables, 1/0 AWG
| Cable Size | 1/0 AWG |
|---|---|
| Connector Type | Standard Barrel |
| Width | 0.85 in |
| Material | Tin-Plated Copper |
| Length | 1.66 in |
| Color Code | Pink |
| Item | Lug Compression Connector |
| Overall Length | 1.66 in |
| Connection Material | Tin |
| Connection Type | 1 x Terminal |
| Features | 90° Angled Connector, Corrosion Resistant |
| Wire Strip Length (mm) | 19.1 |
| Barrel Length (mm) | 18.3 |
| Tongue Width (In.) | 0.85 |
| Product Type | Copper Compression Connectors - Lugs |
| Maximum Voltage (kV) | 35 |
| Overall Length (In.) | 1.66 |
| UL Temperature Rating (°C) | 90 |
| Barrel Type | Standard Barrel Length with Inspection Window |
| Stud Hole Size (mm) | 9.5 |
| Tongue Thickness (mm) | 3.3 |
| Tongue Width (mm) | 21.6 |
| Copper Code Conductor Size (AWG) | 36,526 |
| Base Material | Copper |
| Tongue Type | Standard |
| Stud Hole Size (In.) | 44,993 |
| Overall Length (mm) | 42.2 |
| Burndy Die Index Number | 12 |
| Tongue Angle | 90° |
| Barrel Length (In.) | 0.72 |
| Tongue Thickness (In.) | 0.13 |
| Finish/Coating | Tin-Plated |
| Panduit Die Index Number | P42 |
| Connector Details | 1 x Terminal |
| Connector Plating | Tin |
| Product Material | Copper |
| Product Name | Terminal Connector |
| Product Class | Wire Termination |
| Package Quantity | 1 |
