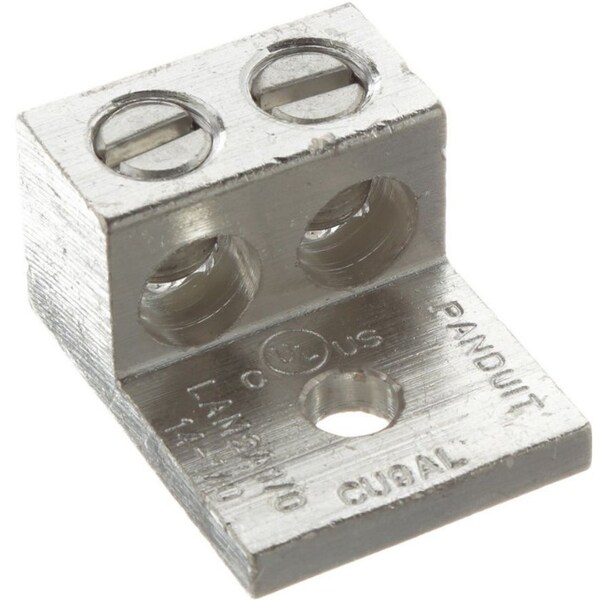

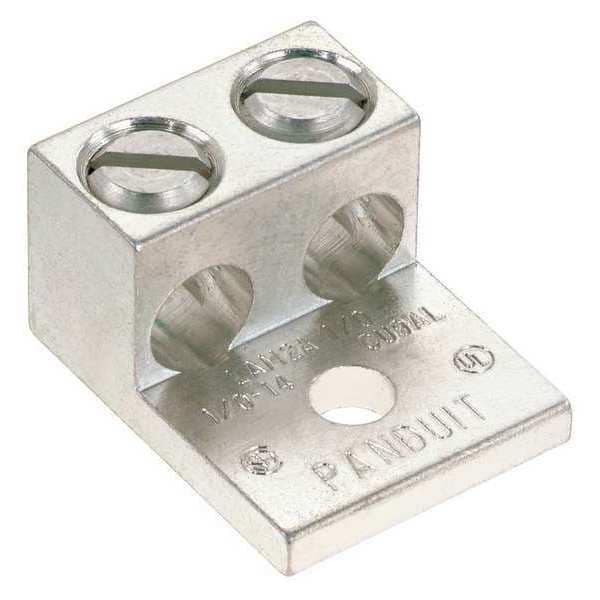

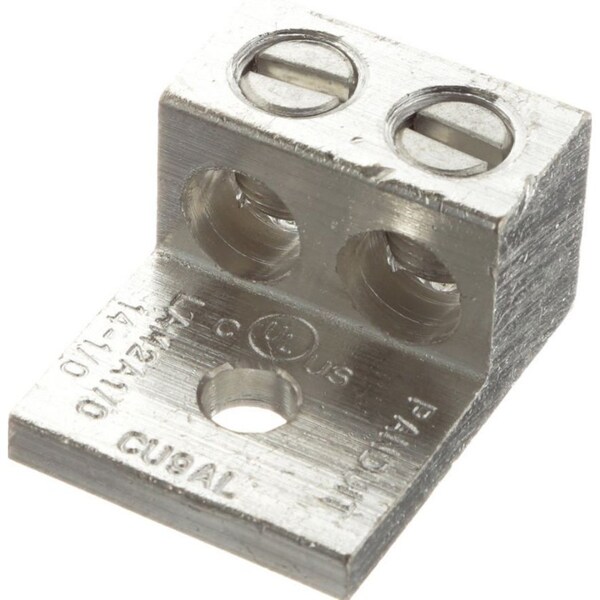

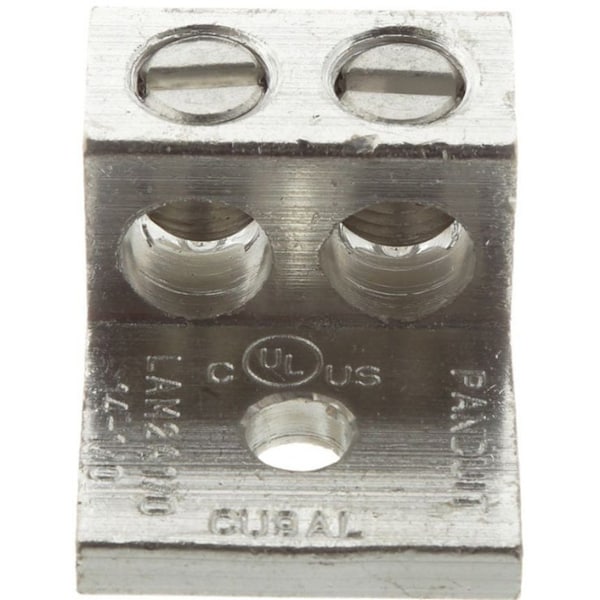

Conector de compresión para cables, 14-1/0 AWG.
| Item | Lug Compression Connector,14-1/0 AWG |
|---|---|
| Height | 0.8 in |
| Overall Length | 1.47 in |
| Features | Halogen Free |
| Application | Stranded Aluminum or Copper Code Conductor |
| Standards Met | cULus Listed for use up to 600V & Temperature Rated to 90°C |
| Minimum Copper Conductor Size (AWG STR) | 14 |
| Base Material | Aluminum |
| Overall Length (In.) | 1.48 |
| Maximum Aluminum Conductor Size (AWG) | 36,526 |
| Maximum Voltage (V) | 600 |
| Overall Height (In.) | 0.77 |
| Overall Length (mm) | 37.5 |
| Tongue Width (mm) | 28.7 |
| Overall Width (mm) | 28.7 |
| Barrel Length (In.) | 0.63 |
| Number of Holes | 1 |
| Finish/Coating | Tin-Plated |
| Barrel Type | Two Barrel |
| Barrel Length (mm) | 16 |
| Tongue Thickness (In.) | 0.19 |
| Maximum Copper Conductor Size (AWG STR) | 36,526 |
| Tongue Length (mm) | 21.6 |
| Slotted Screw | Yes |
| Tongue Length (In.) | 0.85 |
| Tongue Type | Straight Tongue |
| Product Type | Mechanical Connectors |
| UL Temperature Rating (°C) | 90 |
| Tongue Angle | Straight |
| Wire Strip Length (In.) | 0.62 |
| Overall Width (In.) | 1.13 |
| Tongue Thickness (mm) | 4.8 |
| Tongue Width (In.) | 1.13 |
| Overall Height (mm) | 19.5 |
| Stud Hole Size (In.) | 44,930 |
| Wire Strip Length (mm) | 15.7 |
| Minimum Aluminum Conductor Size (AWG) | 14 |
| Product Name | Terminal Connector |
| Product Material | Copper, Aluminum |
| Connector Plating | Tin |
| Connector Details | 1 x Barrel Plug |
| Product Class | Lugs, Splices, Mechanical |
| Package Quantity | 1 |
