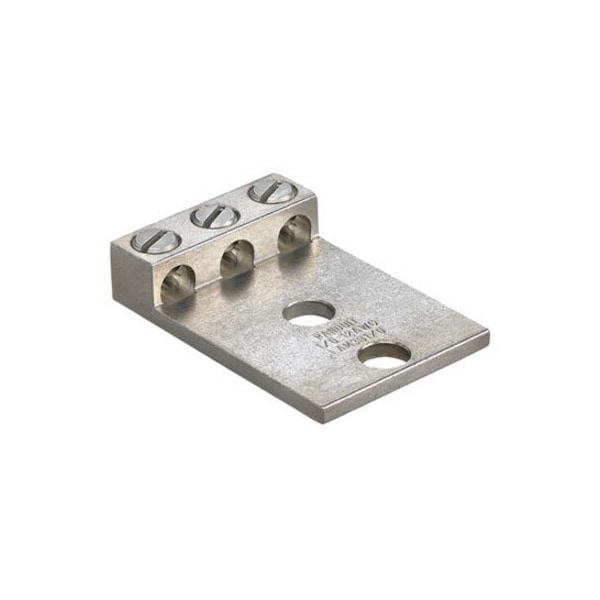

Conector de compresión para cable, calibre 14-1/0 AWG.
| Item | Lug Compression Connector,14-1/0 AWG |
|---|---|
| Height | 0.9 in |
| Overall Length | 2.91 in |
| Stud Hole Size (In.) | 44,993 |
| Number of Holes | 2 |
| Overall Height (In.) | 0.9 |
| Tongue Thickness (mm) | 6.4 |
| Stud Hole Spacing (In.) | 1 |
| Overall Height (mm) | 16 |
| Standards Met | UL Listed and CSA Certified for use up to 600 V and UL temperature rated 90°C |
| Maximum Voltage (V) | 600 |
| Tongue Width (In.) | 2 |
| Tongue Width (mm) | 49.3 |
| Stud Hole Spacing (mm) | 25.4 |
| Overall Length (In.) | 2.91 |
| Tongue Length (mm) | 54.9 |
| Tongue Length (In.) | 2.16 |
| Finish/Coating | Tin-Plated |
| Product Type | Mechanical Connectors |
| Base Material | Aluminum |
| Tongue Type | Straight Tongue |
| Overall Length (mm) | 74.7 |
| Tongue Thickness (In.) | 0.25 |
| UL Temperature Rating (°C) | 90 |
| Connector Plating | Tin |
| Product Material | Copper, Aluminum |
| Product Name | Terminal Connector |
| Connector Details | 1 x Barrel Plug |
| Product Class | Wire Termination |
| Package Quantity | 1 |
