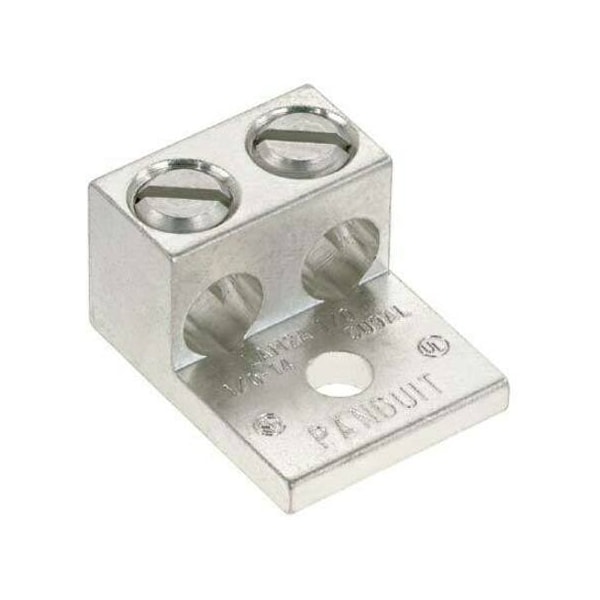

Conector de compresión en curva, 14-2/0 AWG
| Item | Lug Compression Connector,14-2/0 AWG |
|---|---|
| Height | 0.8 in |
| Overall Length | 1.47 in |
| Application | Stranded Aluminum or Copper Code Conductor |
| Features | Halogen Free |
| Finish/Coating | Tin-Platedf |
| Barrel Type | Two Barrel |
| Maximum Voltage (V) | 600 |
| Tongue Length (In.) | 0.85 |
| Tongue Length (mm) | 21.6 |
| Overall Length (mm) | 37.3 |
| Tongue Width (In.) | 1.2 |
| Product Type | Mechanical Connectors |
| Stud Hole Size (In.) | 44,930 |
| UL Temperature Rating (°C) | 90 |
| Tongue Width (mm) | 30.6 |
| Hex Size (mm) | 4.8 |
| Tongue Thickness (In.) | 0.19 |
| Tongue Thickness (mm) | 4.8 |
| Tongue Angle | Straight |
| Standards Met | UL Listed and CSA Certified for use up to 600 V and UL |
| Overall Height (mm) | 19.9 |
| Base Material | Aluminum |
| Overall Height (In.) | 0.8 |
| Tongue Type | Straight Tongue |
| Overall Length (In.) | 1.47 |
| Number of Holes | 1 |
| Connector Details | 1 x Barrel Plug |
| Connector Plating | Tin |
| Product Material | Copper, Aluminum |
| Product Name | Terminal Connector |
| Product Class | Lugs |
| Package Quantity | 1 |
