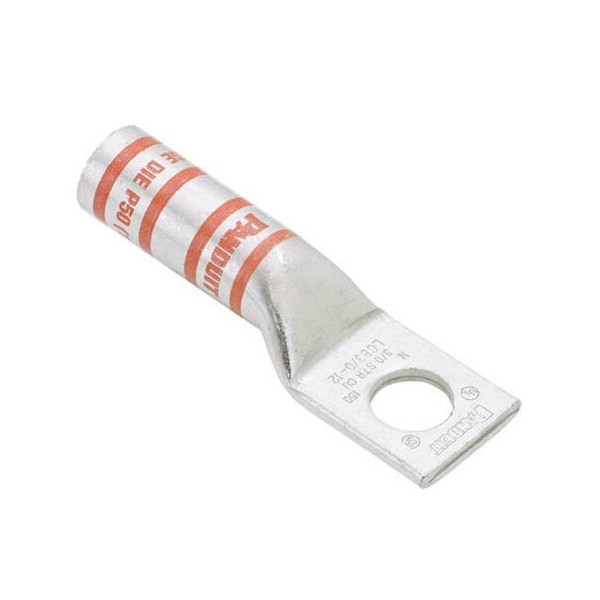

Conector de compresión tipo lug, calibre 2/0 AWG.
| Cable Size | 2/0 AWG |
|---|---|
| Connector Type | Long Barrel |
| Width | 0.85 in |
| Material | Tin-Plated Copper |
| Length | 2.82 in |
| Color Code | Black |
| Item | Lug Compression Connector |
| Connection Type | 1 x Terminal |
| Connection Material | Tin |
| Overall Length | 2.82 in |
| Features | Angled Connector, Corrosion Resistant |
| T & B Die Index Number | 13 |
| Lug Type | 1 Stud Hole Lug |
| Finish/Coating | Tin-Plated |
| Tongue Angle | Straight |
| Barrel Length (mm) | 38.1 |
| Tongue Thickness (In.) | 0.13 |
| Barrel Type | Long Barrel without Inspection Window |
| Burndy Die Index Number | 13 |
| Standards Met | C22.2 No. 65-13, 486A-486B File #E52164 |
| Inside Diameter (In.) | 0.45 |
| Wire Strip Length (In.) | 39,452 |
| Tongue Type | Standard |
| Panduit Die Index Number | P45 |
| Tongue Thickness (mm) | 3.3 |
| UL Temperature Rating (°C) | 90 |
| Maximum Voltage (kV) | 35 |
| Tongue Width (In.) | 0.85 |
| Barrel Length (In.) | 1-1/2 |
| Base Material | Copper |
| Inside Diameter (mm) | 11.43 |
| Stud Hole Size (In.) | 44,993 |
| Overall Length (mm) | 71.6 |
| Copper Code Conductor Size (AWG) | 36,557 |
| Wire Strip Length (mm) | 41.2 |
| Stud Hole Size (mm) | 9.5 |
| Product Type | Copper Compression Connectors - Lugs |
| Tongue Width (mm) | 21.6 |
| Overall Length (In.) | 2.82 |
| Outer Diameter (In.) | 0.58 |
| Outer Diameter (mm) | 14.73 |
| Product Name | Terminal Connector |
| Connector Plating | Tin |
| Product Material | Copper |
| Connector Details | 1 x Terminal |
| Product Class | Lugs, Splices, Mechanical |
| Package Quantity | 1 |
